Brake Master Cylinder for 2006-2009 Hyundai Sonata - Dorman M630535

$195.99

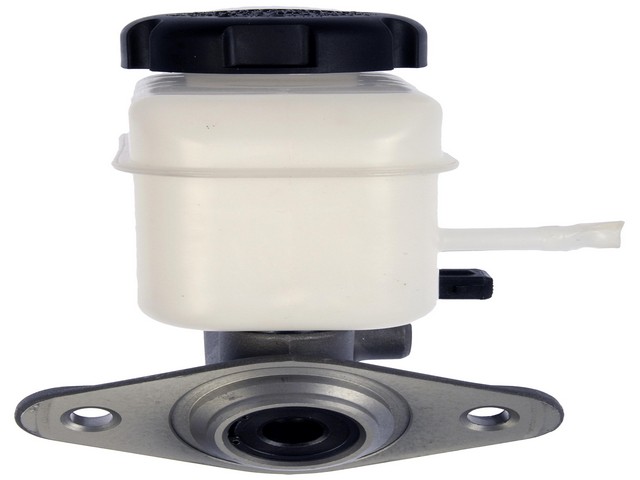

Dorman - First Stop Brake Master Cylinder M630535

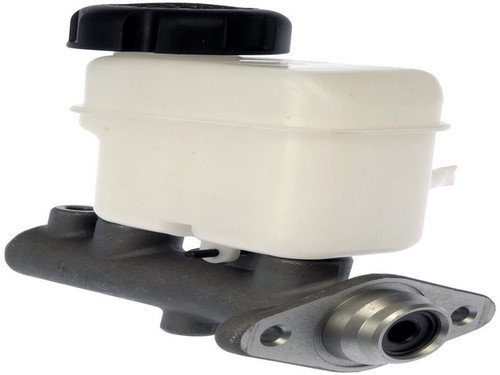

Dorman - First Stop Brake Master Cylinder M630535 - view 2

Dorman - First Stop Brake Master Cylinder M630535 - view 3

Dorman - First Stop Brake Master Cylinder M630535 - view 4

Part number: M630535

UPC: 885484049956

Condition: New

Weight: 2.92 LBS

Item Package Quantity: 1

$195.99

Current Stock: 5

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Dorman - First Stop Brake Master Cylinder P/N:M630535

$195.99

Description

Dorman M630535 brake master cylinder for the 2006-2009 Hyundai Sonata turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is engineered to follow the design, function and performance of the original unit.

Sold in the Dorman First Stop line
EPDM compound in all rubber components for resistance to glycol-based brake fluid
Made entirely of new materials
Built to rigorous SAE International standards

Quick facts

Part: Dorman M630535 brake master cylinder
Fits: 2006-2009 Hyundai Sonata
Material: Aluminum
Condition: New

A leaking caliper or brake hose, or air in the lines, can be behind a soft or sinking brake pedal, so find the cause before buying. If the master cylinder is at fault, this one replaces it.

Fits

It is a master cylinder for the 2006-2009 Hyundai Sonata, which takes one.

Specifications

Fit and size

Quantity per vehicle: 1
Bore diameter: 0.938 in
Number of outlets: 4
Rearward outlet size: M10 x 1.0 mm
Secondary outlet thread diameter: M10 x 1.0 mm
Primary outlet thread pitch: 1 mm

Build and materials

Material: Aluminum
Rubber components: EPDM compound
Condition: New
Reservoir: included
Sensor: included
Country of origin: China

In the box

One brake master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware rather than reusing the old.

Interchange: 13-3417 · 11-3417 · 130.51037 · 355-03035
585103K000 · NM55389 · MC391281 · F142421 · MC142421

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

13-3417, 11-3417, 130.51037, 355-03035, 585103K000, NM55389, MC391281, F142421, MC142421

Buyer's Q&A

Frequently Asked Questions

Does this Dorman master cylinder fit the 2006-2009 Hyundai Sonata?

Yes. Dorman M630535 fits the 2006-2009 Hyundai Sonata, and that car takes one.

Does this brake master cylinder come with its reservoir and sensor?

Yes. The reservoir and the sensor are included with the master cylinder. Mounting hardware is not included.

What are the rubber parts in this master cylinder made of?

All rubber components in Dorman M630535 are made of EPDM compound, chosen for resistance to glycol-based brake fluid.

How do I tell whether the master cylinder in my brakes is wearing out?

A pedal that sinks toward the floor, feels soft, or fluid seeping around the master cylinder can mean it is failing. A shop can test it to confirm.

What size are the outlet ports on the Dorman M630535 master cylinder?

It has four outlets. The rearward outlet is M10 x 1.0 mm, and the primary outlet thread pitch is 1 mm.
