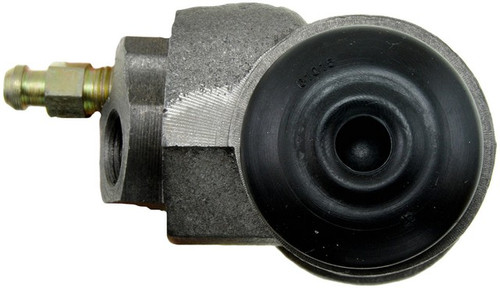

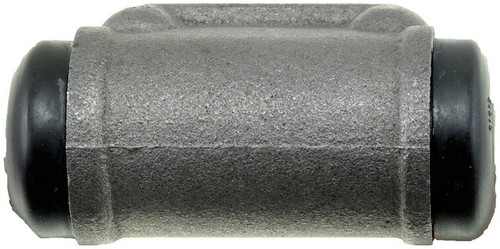

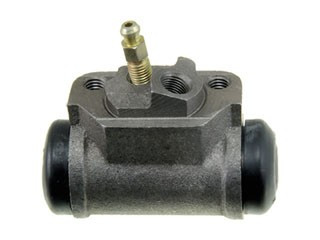

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W37631
$21.99
(You save)
Keep your rear drum brakes applying firm, even pressure with the Dorman - First Stop Drum Brake Wheel Cylinder W37631. It installs as a direct-fit replacement for the 1980-1983 Toyota Pickup [All], which uses two rear wheel cylinders — order 2 for a complete rear-axle service. Mounted in the rear drum brake assembly, the wheel cylinder converts hydraulic brake-line pressure into outward force that pushes the brake shoes against the drum.
Direct replacement: engineered to the original wheel cylinder's fit, function and performance on the listed applications, then manufactured and tested for quality assurance.
Cast-iron body: 0.813 in inside-diameter bore, surface-tested to provide a sound sealing surface for the pressure cups.
EPDM cups and boots: made with high-quality EPDM rubber cups and boots.
Hardware: bleeder screw included; bleeder screw cap not included. Inlet thread size M10 x 1.0 (10 mm, 1.0 pitch).
Servicing the wheel cylinder while the drum brakes are apart is a fast, sensible way to help keep the rear brakes working properly. Signs this part may need replacing include brake fluid seeping at the cylinder or inside the drum, a soft or sinking pedal, and uneven rear braking; diagnose the cause before replacing. Country of origin: China.
It's a direct-fit replacement for the 1980-1983 Toyota Pickup [All]. That application uses two rear wheel cylinders, so order 2 for a complete rear-axle service.
What does a drum brake wheel cylinder do?
It converts hydraulic pressure from the brake line into outward force that pushes the brake shoes against the drum, applying the rear brakes.
Does this wheel cylinder include a bleeder screw?
Yes, a bleeder screw is included. A bleeder screw cap is not included.
What are the bore size and inlet thread?
The cast-iron cylinder has a 0.813 in inside-diameter bore and an M10 x 1.0 inlet thread (10 mm diameter, 1.0 pitch).
What are signs this wheel cylinder may need replacing?
Brake fluid leaking at the cylinder or inside the drum, a soft or sinking brake pedal, or uneven rear braking. Diagnose the cause before replacing.
