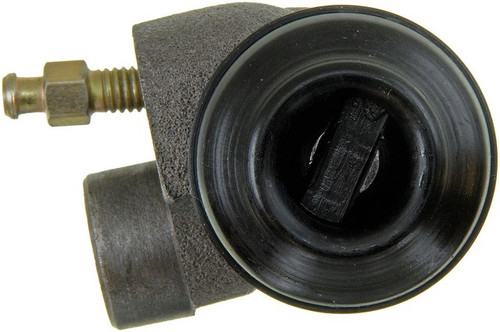

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W4876
$51.99
(You save)
Bring firm, even rear drum braking back to your classic with the Dorman - First Stop Drum Brake Wheel Cylinder W4876. It drops in as a direct-fit rear replacement for the 1941-1942 Nash Ambassador 600, the 1939-1942 and 1946-1953 Studebaker Champion, and the 1951-1953 Studebaker Commander (All engines). Mounted in the rear drum brake assembly, the wheel cylinder converts hydraulic brake-fluid pressure into the mechanical force that pushes the brake shoes outward against the drum. If a leaking, seized, or worn cylinder is the cause of a soft pedal, fluid seepage, or uneven rear braking, this replaces it.
Direct-fit design: specifically engineered to match the fit, function and performance of the original wheel cylinder on the listed applications.
Cast-iron body: with a 0.875 in inside-diameter bore that is surface-tested for an optimal sealing surface for the pressure cups.
EPDM rubber cups and boots: for long-lasting sealing performance.
Bleeder screw included (bleeder screw cap not included); 3/8-24 in inlet thread, 3/8 thread diameter.
Sold individually; the listed applications use two per vehicle, so order 2 and replace both sides together for balanced braking. Made in China.
Mounted in the rear drum brake, it converts hydraulic brake-fluid pressure into the mechanical force that pushes the brake shoes outward against the drum.
Which vehicles does W4876 fit?
It's a direct-fit rear replacement for the 1941-1942 Nash Ambassador 600, the 1939-1942 and 1946-1953 Studebaker Champion, and the 1951-1953 Studebaker Commander (All engines). See the Buyer's Guide tab.
Is a bleeder screw included?
Yes, the bleeder screw is included. The bleeder screw cap is not included.
How many do I need?
It's sold individually. The listed applications use two per vehicle, so order 2 and replace both sides together for even, balanced braking.
What are the bore size and material?
The cast-iron body has a 0.875 in inside-diameter bore with a 3/8-24 in inlet thread and 3/8 thread diameter.
