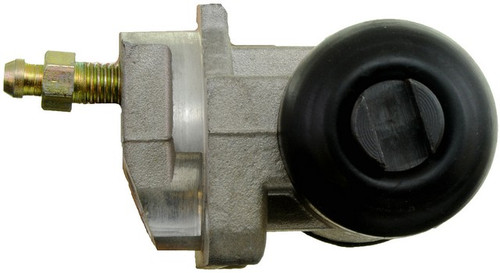

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W96613

Turn hydraulic line pressure into the mechanical force that pushes the rear brake shoes outward against the drum with the Dorman First Stop Drum Brake Wheel Cylinder (W96613). This rear-position drum brake wheel cylinder is built to drop in and match the fit, function and performance of the original unit on a range of Nissan models — including the 1976-1978 B210, 1977-1979 200SX, 1977-1980 810, 1978-1981 510, 1979-1982 210, 1987-1988 Van, 1989 Ichi Van, 1990-1992 Axxess and Stanza, 2000-2001 and 2013 Urvan, and 2014-2020 NV350 Urvan (all engines). See the Buyer's Guide tab for the full fitment.

Features:

• EPDM rubber cups and boots: sealed with high-quality EPDM rubber cups and boots.
• Surface-tested bore: the wheel cylinder bore is surface-tested to provide an optimum sealing surface for the pressure cups.
• Bleeder screw included: ships with a bleeder screw; a bleeder screw cap is not included.
• Bore and thread specs: 0.813 in inside diameter with an M10 x 1.0 (10 mm) inlet thread.

The aluminum wheel cylinder is a cost-effective repair — replacing it while servicing the drum brakes is a quick, sure way to keep the hydraulic side of the brakes working correctly. Worn cups can seep fluid and reduce braking action, so if a failed wheel cylinder is the cause of a soft pedal or a leaking rear brake, this replaces it. Each listing is for one cylinder (package contents: 1); the listed applications use two, so order two to service both sides of the axle as a matched pair. Country of origin: China.

Interchange: 18E152 · 784-04101 · 78404101 · 84-04101 · 8404101 · 84-04103 · 8404103 · W906453 · 101-1136 · 1011136 · W-51101 · W51101 · 072-6547 · 0726547 · 33773 · 134.42101 · 135.42101 · WC13773 · 375-67010 · 37567010 · 96613 · 4410005N14 · 4410017C10 · 44100N5800 · 44100U9200 · 2037407 · WC37406 · WC37407 · F96613 · WC96613 · Manufacturer part number W96613
