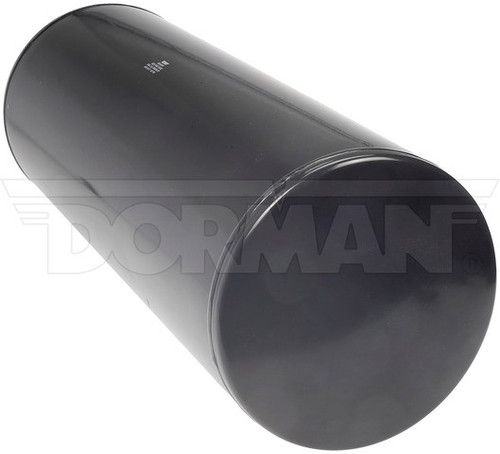

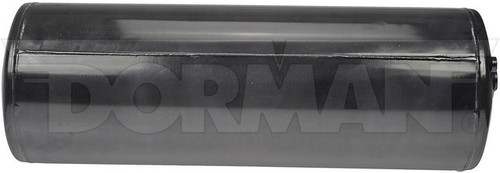

Dorman 924-5814 air brake reservoir for the 2008-2018 International Prostar stores compressed air for the air-actuated braking and suspension systems. It replaces a corroded or leaking air tank.
- Corrosion-resistant coating inside and outside the tank
- Salt spray chamber tested inside and outside to meet or exceed the industry standard for corrosion resistance
- Precise port locations on a single-chamber tank
- Carbon steel tank with 0.13 in material thickness
- 53 L volume with a 150 PSI maximum working pressure
Quick facts
- Part: Dorman 924-5814 air brake reservoir
- Fits: 2008-2018 International Prostar
- Material: Carbon steel
- Condition: New
A corroded or leaking tank can show up as visible rust, an audible air leak or pressure that drops faster than normal. These signs alone do not prove the tank is at fault, since a leaking air line fitting is another common cause.
Fits
It is a direct-fit replacement for the 2008-2018 International Prostar, which takes one tank, with the same port configuration and physical dimensions as the original tank.
Specifications
Fit and size
- Length: 34 in
- Diameter: 11.25 in
- Volume: 53 L
- Port thread diameter: 1/4 in, M22
- Port thread pitch: 1.5 mm
- Mounting type: strap on
- Chambers: 1
- Air tank type: tractor
- Quantity per vehicle: 1
Build and materials
- Material: carbon steel
- Material thickness: 0.13 in
- Coating: corrosion-resistant, inside and outside
- Maximum working pressure: 150 PSI
- Condition: new
- Country of origin: India
In the box
One air tank. Mounting hardware, a threaded mounting bracket and a valve are not included, so plan on new mounting hardware rather than reusing the old.
Interchange: 172.5837
3596837C1
Frequently Asked Questions
Does the Dorman 924-5814 air brake reservoir fit the 2008-2018 International Prostar?
Yes. Dorman 924-5814 fits the 2008-2018 International Prostar, and the truck takes one tank.
Does this Dorman air tank come with a valve or mounting hardware?
No. This listing is one air tank. Mounting hardware, a threaded mounting bracket and a valve are not included.
How much air does the Dorman 924-5814 tank hold and what pressure is it rated for?
Dorman 924-5814 has a 53 L volume and a 150 PSI maximum working pressure. The tank is 34 in long and 11.25 in in diameter.
What signs can mean an air tank is corroded or leaking?
Visible rust, an audible air leak or pressure that drops faster than normal can all mean a tank is failing. A shop can inspect the tank and leak-test the air system.
Is 3596837C1 the same as Dorman 924-5814?
Yes. 3596837C1 is listed as an interchange number for Dorman 924-5814, along with 172.5837.
