Dorman 932-108 drive shaft CV joint for the 2003-2006 Kia Sorento and other vehicles passes drive torque through the driveshaft as the shaft flexes at an angle.
- Replaces a joint that failed from collision damage, water infiltration or road debris contamination
- Steel construction made from quality materials for reliable performance and long service life
- Bolt-on mounting with six mounting holes
Quick facts
- Part: Dorman 932-108 drive shaft CV joint
- Fits: the 2003-2006 Kia Sorento and other vehicles
- Position: rear driveshaft - CV at transmission, front driveshaft - CV at transfer case
- Material: steel
- Condition: New
A clunk or vibration when you accelerate or shift, or grease thrown from a torn boot, can mean the joint is worn. Worn parts elsewhere in the driveline can give similar symptoms, so pin down the source before replacing the joint; a shop can test driveline play safely on a lift.
Fits
This drive shaft CV joint is designed to match the original joint in fit, appearance and function on the 2003-2006 Kia Sorento, the 2007-2010 Saturn Sky and the 2006-2009 Pontiac Solstice. The 2003-2006 Kia Sorento takes one joint, and the 2007-2010 Saturn Sky and 2006-2009 Pontiac Solstice take one each.
Specifications
Fit and size
- Position: rear driveshaft - CV at transmission; front driveshaft - CV at transfer case
- Quantity per vehicle: 1
- Housing outside diameter: 3.7 in
- Housing thickness: 1.264 in
- Bolt circle diameter: 3.15 in, 6 mounting holes
- Bolt diameter: 0.342 in, thread M8 x 1.25 mm
- Spline diameter: 0.979 in
- Spline length: 0.95 in, 25 splines
Build and materials
- Material: steel
- Item grade: standard replacement
- Condition: New
- Grease: included
- Axle nut: not included
- Country of origin: China
In the box

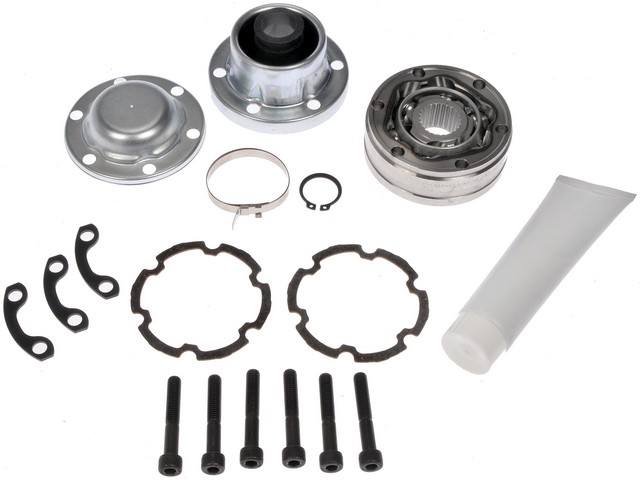

One drive shaft CV joint, one tube of grease, one snap ring, one clamp, three boot clamps, two gaskets and six bolts. The axle nut is not included, so plan on buying a new one.
Interchange: 15922549 · 15922550 · 491003E050 · 491003E070
This part cross-references / interchanges with the following part numbers:
15922549, 15922550, 491003E050, 491003E070
Frequently Asked Questions
Does the Dorman 932-108 drive shaft CV joint fit the 2007-2010 Saturn Sky?
Yes. Dorman 932-108 fits the 2007-2010 Saturn Sky, and the fitment lists one joint per vehicle.
Is this Dorman drive shaft CV joint sold as a kit?
Yes. Dorman 932-108 comes as a kit with grease, a snap ring, a clamp, three boot clamps, two gaskets and six bolts. The axle nut is not included.
What is the bolt circle on this drive shaft CV joint?
The bolt circle is 3.15 in across with six mounting holes. Bolt diameter is 0.342 in, with an M8 x 1.25 mm thread.
Can a clunk when I accelerate come from a worn drive shaft CV joint?
It can. A clunk or vibration under load, or grease flung from a torn boot, can mean the joint is worn. A shop can test it, and those signs call for prompt attention.
Is 491003E050 an interchange number for this drive shaft CV joint?
Yes. 491003E050 is listed as an interchange number for this drive shaft CV joint.
