Dorman 932-201 front drive shaft CV joint for the 1998-2011 Ford Ranger and other vehicles carries drive torque while the shaft angle changes. It is made to match the original joint in fit, appearance and function.
- Steel construction
- Replaces an original joint that failed from collision damage, water infiltration or road debris contamination
- Six mounting holes on a 3.596 in bolt circle
- 26 splines on a 1.051 in spline diameter
Quick facts
- Part: Dorman 932-201 drive shaft CV joint
- Fits: 1998-2011 Ford Ranger and other vehicles
- Position: Front
- Material: Steel
- Condition: New
Vibration that builds with speed, a clunk when pulling away, or grease thrown from a torn boot can mean this joint is worn. A worn universal joint or a bent drive shaft can be behind any of them, so find the cause first. If the joint is the cause, this one replaces it.
Fits
This Dorman drive shaft CV joint is listed for a wide range of Ford, Mazda, Lincoln and Mercury models, led by the 1998-2011 Ford Ranger, the 1997-2005 Ford Explorer and the 1998-2008 Mazda B4000, with one joint per vehicle. If your car is not named here, look up your own year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1
- Mounting holes: 6
- Bolt circle diameter: 3.596 in
- Bolt diameter: 0.347 in
- Bolt thread size: M8 x 1.25 mm
- Spline diameter: 1.051 in
- Spline length: 1.297 in
- Splines: 26
- Housing outside diameter: 4.206 in
- Housing thickness: 1.394 in
Build and materials
- Material: Steel
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box

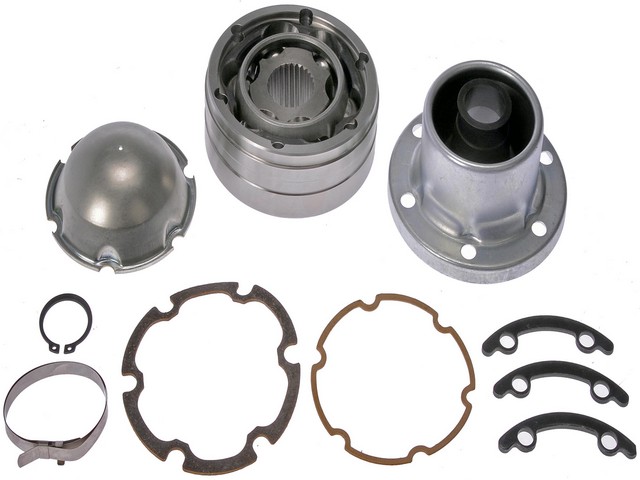

One drive shaft CV joint, a boot clamp, a snap ring, grease and installation hardware.
Interchange: 1L2Z4A376AA · XL2Z4A376AA · SK932201
This part cross-references / interchanges with the following part numbers:
1L2Z4A376AA, 932201, XL2Z4A376AA, SK932201
Frequently Asked Questions
Does the Dorman 932-201 fit the 1998-2011 Ford Ranger?
Yes. Dorman 932-201 is listed as a front drive shaft CV joint for the 1998-2011 Ford Ranger, and the Ranger takes one.
Does the Dorman 932-201 come with grease and a snap ring?
Yes. The kit includes one CV joint, grease, a boot clamp, a snap ring and installation hardware.
What bolt circle and bolt thread does this front drive shaft CV joint have?
Dorman 932-201 has six mounting holes on a 3.596 in bolt circle. The bolts are M8 x 1.25 mm and 0.347 in in diameter.
What is this Dorman drive shaft CV joint made of?
This drive shaft CV joint is made of steel and is a standard replacement grade. Its country of origin is China.
Does Dorman 932-201 replace Ford number XL2Z4A376AA?
Yes. XL2Z4A376AA is listed as an interchange number for this joint, along with 1L2Z4A376AA and SK932201.
