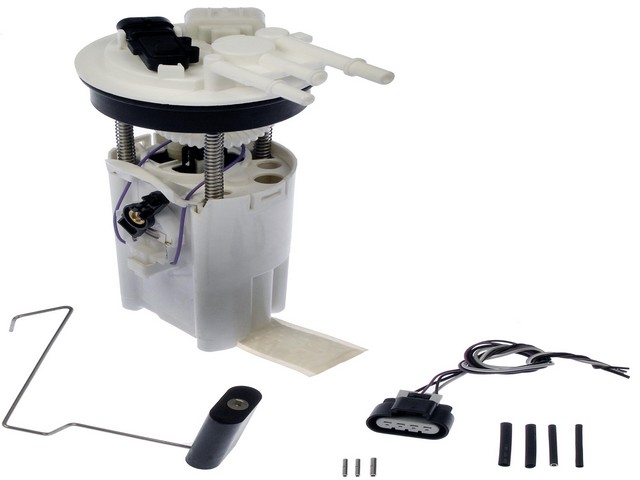

Dorman 2630315 fuel pump for the 2000-2001 Chevrolet Suburban 2500 V8 6.0L, the 2001 Suburban 2500 V8 8.1L and other vehicles moves fuel from the tank to the engine. It is sold as a fuel pump module assembly, a direct replacement that comes with its wire harness and seal.
- Part of the Dorman OE Solutions line
- Electric in-tank pump on 12 V DC with a plastic housing
- Flow rating of 30 gph minimum free flow and 42 gph maximum
- Pressure range of 43 to 62 psi
- Fuel sending unit, strainer, fuel filter and fuel tank pressure sensor included
Quick facts
- Part: Dorman 2630315 fuel pump
- Fits: the 2000-2001 Chevrolet Suburban 2500 V8 6.0L, the 2001 Suburban 2500 V8 8.1L and other vehicles
- Material: Plastic (housing)
- Condition: New
Hard starting, sputtering under load or stalling can be signs of a weak fuel pump. These signs alone do not prove the pump is the problem; a faulty fuel pump relay is another common cause. If the pump is the cause, this module replaces it.
Fits
This fuel pump fits the 2000-2001 Chevrolet Suburban 2500 V8 6.0L, the 2001 Suburban 2500 V8 8.1L and the 2000-2001 GMC Yukon XL 1500 V8 5.3L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet outside diameter: 7.9 mm
- Outlet outside diameter: 7.9 mm
- Top mount diameter: 121 mm
- Wiring harness length: 12 in
- Terminals: 4 male blade terminals
- Outlet type: flanged
Build and materials
- Pump type: electric, in tank
- Housing material: plastic
- Seal material: rubber
- Voltage: 12 V DC
- Flow: 30 gph minimum, 42 gph maximum
- Pressure: 43 to 62 psi
- Sending unit resistance: 40 ohms empty, 250 ohms full
- Condition: new
- Country of origin: China
In the box
One fuel pump with its fuel sending unit, strainer, fuel filter, fuel tank pressure sensor, rubber seal and mounting hardware, plus one wire harness and four heat shrink tubes. A regulator and a lock ring are not included. This listing holds one fuel pump, and a vehicle needs one.
Interchange: E3509M · P74836M · FG0105 · 19121630 · 19153716 · 25315983 · SP6171M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E3509M, P74836M, FG0105, 19121630, 19153716, 25315983, SP6171M
Frequently Asked Questions
Is this a fuel pump for the 2000-2001 GMC Yukon XL 1500 V8 5.3L?
Yes. Dorman 2630315 is a direct replacement for the 2000-2001 GMC Yukon XL 1500 V8 5.3L, and that vehicle takes one pump.
Does the Dorman 2630315 fuel pump come with a wire harness and a fuel sending unit?
Yes. Dorman 2630315 includes the wire harness, four heat shrink tubes, mounting hardware, rubber seal, strainer, filter, tank pressure sensor and sending unit, but no regulator or lock ring.
What flow rate and pressure does this electric fuel pump deliver?
This electric fuel pump has a 30 gph minimum free flow and a 42 gph maximum flow rating, with a pressure range of 43 to 62 psi on 12 V DC.
What resistance should the sending unit in this fuel pump module show?
The sending unit is rated at 40 ohms empty and 250 ohms full. A shop can test it with the module out of the tank.
Does the Dorman 2630315 fuel pump interchange with FG0105?
Yes. FG0105 is listed as an interchange number for Dorman 2630315, so it can be matched against that number.
