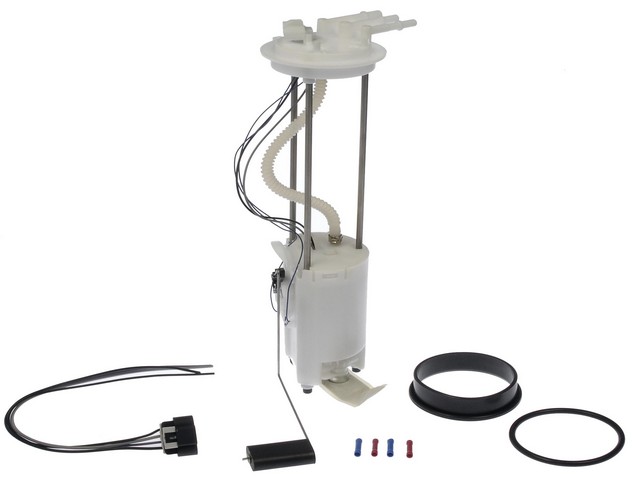

Dorman 2630370 fuel pump for the 1999-2003 Chevrolet Silverado 1500 V6 4.3L, V8 4.8L or 5.3L, the 2003 Silverado 1500 V8 6.0L and other vehicles is an electric in-tank pump that sends fuel from the tank to the engine. Sold as a fuel pump module assembly, it is a direct replacement for the original pump on these vehicles.
- Dorman OE Solutions line, standard replacement grade
- Electric pump on a 12 V DC supply with a 6 A average current draw
- Flow rated at 30 gph minimum and 42 gph maximum, with a pressure range of 43 to 62 psi
- Fuel sending unit, strainer, fuel filter and fuel tank pressure sensor included
- Plastic housing with a rubber seal
- Rigorous testing to confirm reliable performance
Quick facts
- Part: Dorman 2630370 fuel pump
- Fits: the 1999-2003 Chevrolet Silverado 1500 V6 4.3L, V8 4.8L or 5.3L, the 2003 Silverado 1500 V8 6.0L and other vehicles
- Material: Plastic housing
- Condition: New
Hard starting, an engine that cranks but will not start, or sputtering under load can mean the pump is wearing out. A blown fuse can look the same, so look at the fuel pump fuse for damage with the ignition off first; a shop can test the wiring and fuel pressure. Each vehicle takes one pump, located in the fuel tank.
Fits
The 1999-2003 GMC Sierra 1500 V6 4.3L, V8 4.8L or 5.3L and the 2001-2003 Sierra 1500 V8 6.0L take this fuel pump too, along with many other Chevrolet and GMC vehicles. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet outside diameter: 7.9 mm
- Outlet outside diameter: 7.9 mm
- Top mount diameter: 121 mm
- Housing: 240 mm long, 121 mm wide
- Wiring harness: 12 in long, 4 wires, male blade terminals
Build and materials
- Pump type: Electric, in-tank
- Electrical: 12 V DC, 6 A average current draw
- Flow rating: 30 gph minimum, 42 gph maximum
- Pressure: 43 to 62 psi
- Housing material: Plastic
- Seal material: Rubber
- Condition: New
- Country of origin: China
In the box
One fuel pump, one harness, one tank seal, one O-ring and four butt connectors. Mounting hardware is included. A regulator and a lock ring are not included.
Interchange: E3501M · 67429 · P75014M · FG0271 · 19121627 · 19121632 · 19153712 · 25314655 · 25315817 · 25345028 · SP61090M
This part cross-references / interchanges with the following part numbers:
E3501M, 67429, P75014M, FG0271, 19121627, 19121632, 19153712, 25314655, 25315817, 25345028, SP61090M
Frequently Asked Questions
Is Dorman 2630370 the 2000 Chevy Silverado 1500 fuel pump for the 1999-2003 Silverado 1500 with V6 4.3L, V8 4.8L or 5.3L?
Yes. Dorman 2630370 fits the 1999-2003 Chevrolet Silverado 1500 with V6 4.3L, V8 4.8L or 5.3L, and the 2003 Silverado 1500 with V8 6.0L. Other vehicles are in the "Vehicles it fits" section.
Is this the GMC Sierra 1500 fuel pump for the 1999-2003 model with V6 4.3L, V8 4.8L or 5.3L?
Yes. This fuel pump fits the 1999-2003 GMC Sierra 1500 with V6 4.3L, V8 4.8L or 5.3L, and the 2001-2003 Sierra 1500 with V8 6.0L.
What comes with the Dorman 2630370 fuel pump besides the pump module?
Dorman 2630370 comes with a harness, a tank seal, an O-ring and four butt connectors, plus mounting hardware. A regulator and a lock ring are not included.
What are the flow and pressure ratings of this in-tank fuel pump?
This pump is rated for 30 gph minimum and 42 gph maximum flow, with a pressure range of 43 to 62 psi, on a 12 V DC supply.
Does this fuel pump include the fuel sending unit and filter?
Yes. This fuel pump includes the fuel sending unit, a strainer, a fuel filter and a fuel tank pressure sensor.
