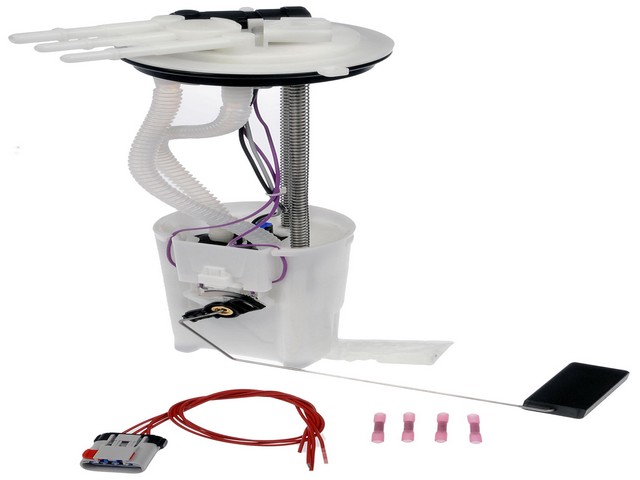

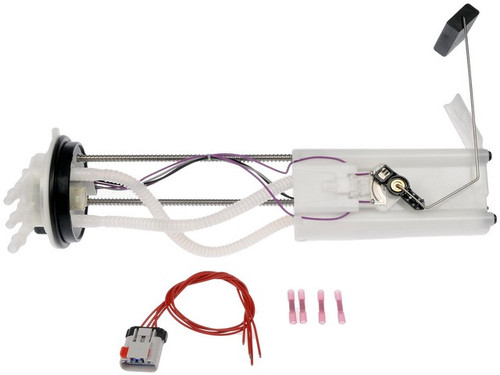

Dorman 2630373 fuel pump module for the 2000-2002 Chevrolet S10 4-cylinder 2.2L and other vehicles sends fuel from the tank to the engine. Built from durable materials, the pump is designed for a long service life.
- Maximum flow rating of 25.1 U.S. gallons per hour
- Maximum pressure rating of 123.28 psi
- White female flat-plug connector with four wires and four female spade terminals
- Plastic housing with male inlet and outlet fittings
- Fuel pump module that has undergone rigorous testing for reliable performance
Quick facts
- Part: Dorman 2630373 fuel pump module
- Also called: fuel pump assembly
- Fits: 2000-2002 Chevrolet S10 4-cylinder 2.2L and other vehicles
- Material: plastic housing
- Condition: New
Hard starting, stalling or a loss of power under load can mean the fuel pump module is weak, though other faults can produce the same symptoms. Before replacing it, look the wiring connector over for corrosion or damage with the engine off; a shop can test fuel pressure.
Fits
It is a direct replacement for the 2000-2002 Chevrolet S10 4-cylinder 2.2L and the 2000-2002 GMC Sonoma 4-cylinder 2.2L, and each takes one module. This listing is a single module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Height: 287 mm
- Housing length: 174 mm
- Housing width: 94 mm
- Inlet outside diameter: 9.49 mm
- Outlet diameter: 7.89 mm
- Top mount diameter: 6.35 mm
Build and materials
- Housing material: plastic
- Gasket or seal: included
- Condition: New
- Country of origin: China
In the box
One fuel pump module with a gasket or seal. A lock ring is not included, so plan on a new one.
Interchange: MU1274 · P74990M · FG0376 · 15073337 · 15129825 · 15748499 · SP3527M · SP6017M · 150064
This part cross-references / interchanges with the following part numbers:
MU1274, P74990M, FG0376, 15073337, 15129825, 15748499, SP3527M, SP6017M, 150064
Frequently Asked Questions
Is the Dorman 2630373 fuel pump module right for a 2000-2002 Chevrolet S10 4-cylinder 2.2L?
Yes. Dorman 2630373 fits the 2000-2002 Chevrolet S10 4-cylinder 2.2L and the 2000-2002 GMC Sonoma 4-cylinder 2.2L, and each vehicle takes one module.
Does this fuel pump module come with a lock ring?
No. Dorman 2630373 comes with a gasket or seal, but the lock ring is not included.
What flow rate and pressure is this fuel pump module rated for?
The maximum flow rating is 25.1 U.S. gallons per hour, and the maximum pressure rating is 123.28 psi.
What kind of electrical connector does this fuel pump module use?
This fuel pump module has a white female flat-plug connector, with four wires and four female spade terminals.
Are the inlet and outlet fittings male or female on this fuel pump assembly?
Both the inlet and the outlet are male. The inlet outside diameter is 9.49 mm and the outlet diameter is 7.89 mm.
