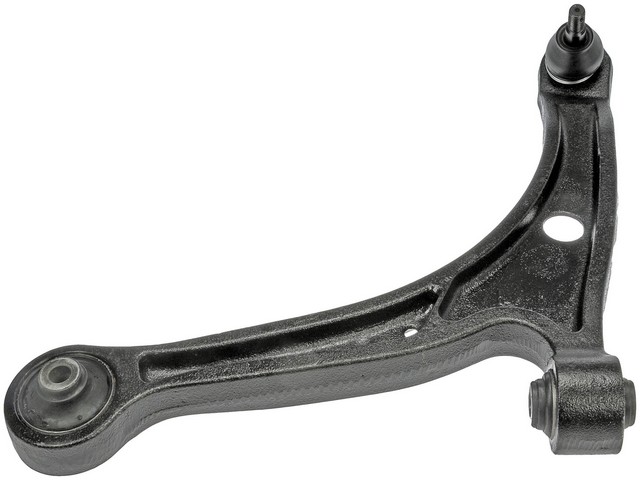

Dorman 521-713 front left lower control arm with ball joint for the 2003-2008 Honda Pilot and other vehicles connects the front left wheel assembly to the chassis. This Dorman suspension control arm and ball joint assembly is a direct replacement for the original equipment on specific vehicle applications.
- Tested for a smooth ride, directional stability and predictable dynamics
- Ball joint and rubber bushings come pre-installed, saving time and labor
- Additional coatings resist rust and corrosion
- Threaded ball joint stud with a 14 mm thread diameter
Quick facts
- Part: Dorman 521-713 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2003-2008 Honda Pilot and other vehicles
- Position: Front left lower
- Material: Iron control arm, rubber bushings
- Condition: New
A clunk over bumps, uneven tire wear or loose-feeling steering can mean this arm or its ball joint is worn, though a worn sway bar link or strut mount can be behind the same signs, so find the cause before replacing anything.
Fits
This is a replacement control arm for the 2003-2008 Honda Pilot and the 2001-2006 Acura MDX. This listing is one side only; the other side of the front axle is normally done at the same time.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 for the front left
- Maximum length: 237 mm
- Maximum width: 288.5 mm
- Mounting hole diameter: 12.3 mm
- Mounting hole quantity: 1
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm material: Iron
- Construction: Casting/Forged
- Bushing material: Rubber
- Ball joint stud: Threaded
- Grade: Standard replacement
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint. This listing holds one assembly, and the front left of each vehicle takes one. A grease fitting is not included.
Installation notes
- The ball joint arrives pre-greased.
- Mounting hardware is included.
Interchange: 102-6448 · 810-96937B
TC5227 · CA8544 · 51360S3VA00 · 51360S3VA01 · 51360S3VA03 · 51360S3VA10 · 51360S9VA00 · 5CB60082 · RK621349 · FA3053 · GS60105 · CMS60105 · 2606052 · SK521713 · 1509043 · X17CJ6577 · JTC2660
This part cross-references / interchanges with the following part numbers:
102-6448, 810-96937B, TC5227, CA8544, 51360S3VA00, 51360S3VA01, 51360S3VA03, 51360S3VA10, 51360S9VA00, 5CB60082, RK621349, FA3053, GS60105, CMS60105, 2606052, SK521713, 1509043, X17CJ6577, JTC2660
Frequently Asked Questions
Is this the 2003-2008 Honda Pilot lower control arm for the front left side?
Yes. Dorman 521-713 is the front left lower control arm for the 2003-2008 Honda Pilot and the 2001-2006 Acura MDX. The front right side is a separate part.
Does the Dorman control arm come with the ball joint and bushings installed?
Yes. Dorman 521-713 includes the ball joint and rubber bushings already installed, plus mounting hardware. No grease fitting is included.
What size is this Dorman lower control arm?
The arm is 237 mm long and 288.5 mm wide at its maximum, with one 12.3 mm mounting hole. The ball joint stud is threaded with a 14 mm thread diameter.
What signs show a front left control arm and ball joint may be worn?
Cracked or torn bushing rubber, a bent or rusted arm, or steering that wanders can mean wear. A shop can check ball joint play.
Is the ball joint on Dorman 521-713 pre-greased?
Yes. The ball joint comes pre-greased, and no grease fitting is included. The stud is threaded with a 14 mm thread diameter.
