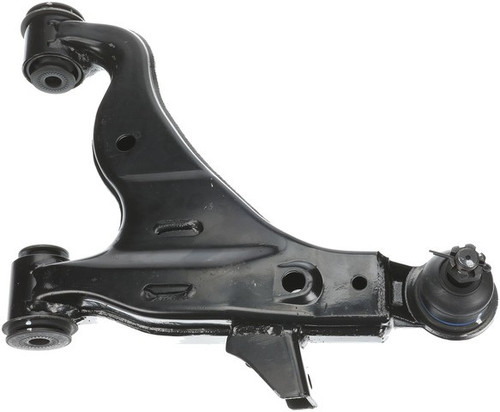

Dorman 524-260 front right lower control arm with ball joint for the 2005-2015 Toyota Tacoma and other vehicles connects the right front wheel to the frame. The steel arm lets the wheel move with the suspension while holding its position.
- Part of the Dorman OE Solutions line
- Ball joint and bushings are pre-installed on the arm, a complete repair that saves time and labor
- Ball joint comes pre-greased
- Tested for a smooth, stable ride and directional stability
- Additional coatings resist rust and corrosion
Quick facts
- Part: Dorman 524-260 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2005-2015 Toyota Tacoma and other vehicles
- Position: Front right lower
- Material: Steel (control arm), rubber (bushings)
- Condition: New
Control arms are normally replaced in pairs, so plan on the front left arm as well; this listing is one arm. A clunk over bumps, uneven tire wear or loose steering feel can mean a worn arm or ball joint. These signs alone do not prove this arm is the problem, since a worn tie rod end or strut can cause them too.
Fits
This arm is a direct replacement for the original equipment on the 2005-2015 Toyota Tacoma and the 2006-2015 Toyota Hilux.
Specifications
Fit and size
- Position: front right lower
- Quantity per vehicle: 1 for this position
- Mounting hole diameter: 12.3 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
- Ball joint thread diameter: 14 mm
- Ball joint stud type: threaded
Build and materials
- Control arm type: boxed
- Control arm material: steel
- Bushing material: rubber
- Grade: standard replacement
- Adjustable: no
- Condition: new
- Country of origin: Taiwan
In the box
One front right lower control arm with the ball joint and bushings installed, plus mounting hardware. A grease fitting is not included. The front right takes one arm, and the front left is a separate part.
Interchange: 102-6428
TC6680 · CA12656 · 9CB86170 · RK621293 · RK641521 · GS861043 · CMS861043 · 2607879 · 2607879M · 1525018 · X50CJ0972 · 4806804030
This part cross-references / interchanges with the following part numbers:
102-6428, TC6680, CA12656, 9CB86170, RK621293, RK641521, GS861043, CMS861043, 2607879, 2607879M, 1525018, X50CJ0972, 4806804030
Frequently Asked Questions
Is this a lower control arm for the 2005-2015 Toyota Tacoma?
Yes. Dorman 524-260 is the front right lower control arm for the 2005-2015 Toyota Tacoma. It also fits the 2006-2015 Toyota Hilux.
Which side of the 2005-2015 Toyota Tacoma takes this A-arm?
The front right. Dorman 524-260 is a lower control arm (A-arm) for that side only, and the front left arm is a separate part.
What comes with this Dorman suspension control arm and ball joint assembly?
One front right lower arm with the ball joint and bushings already installed, plus mounting hardware. A grease fitting is not included, and the front left arm is ordered separately.
What is the Dorman control arm made of?
The boxed arm is steel and the bushings are rubber. Additional coatings give it rust and corrosion resistance.
Is this Dorman suspension control arm pre-greased?
Yes. The ball joint comes pre-greased, and this arm has no grease fitting.
