Front Brake Rotor for 2005-2013 Chevrolet Corvette & More - Raybestos 580253

$96.99

Raybestos Brakes Disc Brake Rotor 580253

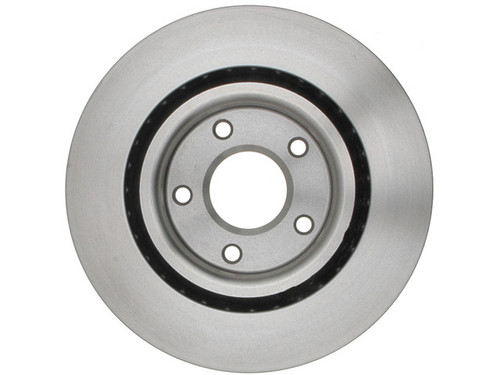

Raybestos Brakes Disc Brake Rotor 580253 - view 2

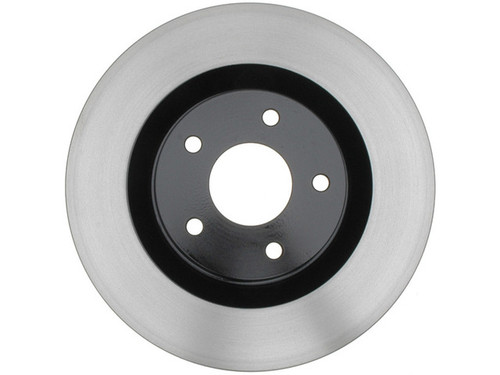

Raybestos Brakes Disc Brake Rotor 580253 - view 3

Part number: 580253

UPC: 829352331613

Condition: New

Weight: 4.50 LBS

Item Package Quantity: 1

$96.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:580253

$96.99

Description

Raybestos 580253 front brake rotor for the 2005-2013 Chevrolet Corvette and other vehicles is the surface the pads clamp against to slow the wheel. This disc brake rotor is one of the Raybestos street performance rotors.

Raybestos Specialty Street Performance Brake Rotor line
Raybestos performance rotors use enhanced iron to suppress noise and keep brakes running cool, quiet and vibration free
Cooling vanes for cooling and reduced fade
Application-specific coating, from black fusion on the rotor hat to Grey Fusion 4.0 on the entire rotor
Turned finish to minimize noise and improve responsiveness for smoother stops

Quick facts

Part: Raybestos 580253 brake rotor
Also called: disc brake rotor
Fits: 2005-2013 Chevrolet Corvette and other vehicles
Position: Front
Material: Enhanced iron
Condition: New

A pulsing brake pedal, vibration under braking or visible grooves in the rotor face can mean a rotor is worn. Before you replace it, rule out a sticking caliper or worn pads, which can give similar symptoms. Front rotors are normally replaced as a pair, and this listing is one rotor.

Fits

It is a direct-fit replacement for the 2005-2013 Chevrolet Corvette and the 2004-2009 Cadillac XLR.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Outside diameter: 325 mm (12.795 in)
Center hole diameter: 70.7 mm (2.783 in)
Bolt circle: 120.65 mm (4.75 in), 5 lug holes
Mounting bolt hole diameter: 13.35 mm (0.525 in)
Nominal thickness: 32 mm (1.26 in)
Discard thickness: 30 mm (1.181 in)
Overall height: 45.45 mm (1.79 in)

Build and materials

Type: Vented, conventional (not drum-in-hat)
Material: Enhanced iron
ABS tone ring: not included
Condition: New
Country of origin: China

In the box

One front brake rotor. The front axle takes two.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Are these Corvette rotors the right ones for a 2005-2013 Chevrolet Corvette?

Yes. Raybestos 580253 is a front brake rotor for the 2005-2013 Chevrolet Corvette, and it also fits the 2004-2009 Cadillac XLR.

Do these Raybestos rotors come with an ABS tone ring?

No. The Raybestos 580253 does not include an ABS tone ring. This listing is one front rotor.

What size is the Raybestos 580253 rotor, and how many lug holes does it have?

It is 325 mm (12.795 in) across with 5 lug holes on a 120.65 mm (4.75 in) bolt circle and a 70.7 mm (2.783 in) center hole.

At what thickness should this front rotor be replaced?

Nominal thickness is 32 mm, and discard thickness is 30 mm (1.181 in). A rotor measuring 30 mm or less is due for replacement, and a brake shop can measure it.

Is this front rotor vented or solid?

It is vented, with cooling vanes, and a conventional type rather than a drum-in-hat rotor.
