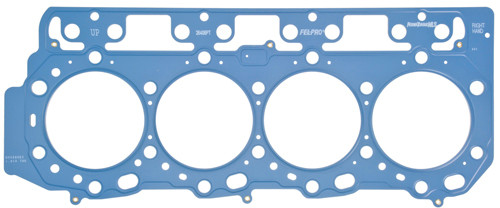

FEL-PRO 26406 PT right cylinder head gasket for the 2006-2016 Chevrolet Express 2500 V8 6.6L and other vehicles seals the joint between the engine block and cylinder head. Built for the repair environment, this FEL-PRO cylinder head gasket helps seal imperfect sealing surfaces.
- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra
- LaserWeld stopper layer reduces gasket damage from blow out and helps ensure a stronger combustion seal
- PermaTorque MLS construction: multiple layers maintain sealing stress and accommodate head lift
- Precise embossed sealing beads at all vital areas to eliminate leak paths
- Embossments engineered to resist over-compression under peak combustion pressures and temperatures
Quick facts
- Part: FEL-PRO 26406 PT cylinder head gasket
- Also called: engine cylinder head gasket
- Fits: the 2006-2016 Chevrolet Express 2500 V8 6.6L and other vehicles
- Position: Right
- Material: PermaTorque MLS
- Condition: New
Coolant loss with no visible leak, white exhaust smoke or overheating can mean an engine cylinder head gasket has failed, though a warped cylinder head or a leaking radiator hose can produce some of the same symptoms.
Fits
This right-side cylinder head gasket, made for V8 6.6L engines, fits the 2006-2016 Chevrolet Express 2500 V8 6.6L, the 2006-2016 Express 3500 V8 6.6L and the 2009-2016 Express 4500 V8 6.6L, among other vehicles. The 2006-2016 Chevrolet Express 2500 V8 6.6L takes one on the right side; the left side is a separate gasket, ordered on its own. If your vehicle isn't named above, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
- Thickness: 0.047 in
- Cylinder bore diameter: 4.150 in
- Head gasket bore: 4.145 in
- Design: .010 thicker, for use when the block is refaced
Build and materials
- Material: PermaTorque MLS
- Condition: New
- Country of origin: United States
In the box
One right-side cylinder head gasket. Gasket sealant is not included.
Interchange: 97358465 · 54598 · 611041400 · 613712000
This part cross-references / interchanges with the following part numbers:
97358465, 54598, 611041400, 613712000
Frequently Asked Questions
Will the FEL-PRO 26406 PT work on a 2006-2016 Chevrolet Express 3500 V8 6.6L?
Yes. FEL-PRO 26406 PT fits the 2006-2016 Chevrolet Express 3500 V8 6.6L. It is a right-side gasket, so the left side is a separate part.
Do FEL-PRO head gaskets like the 26406 PT come with gasket sealant?
No. FEL-PRO 26406 PT is the gasket only and does not include gasket sealant.
What bore sizes does this right head gasket use?
This gasket has a 4.145 in head gasket bore for a 4.150 in cylinder bore, and it is 0.047 in thick.
Is this head gasket meant for a block that has been refaced?
Yes. The design is .010 thicker for use when the block is refaced.
Does the FEL-PRO 26406 PT replace part number 54598?
Yes. 54598 is one of the interchange numbers this FEL-PRO 26406 PT gasket replaces.
