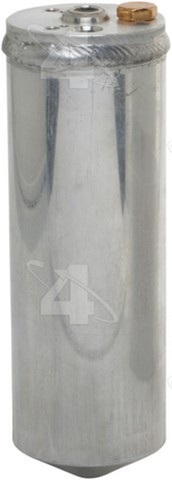

Four Seasons A/C Receiver Drier P/N:83036

Be the first to review this product
$17.99
MPN: 83036
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Four Seasons A/C Receiver Drier P/N:83036
Four Seasons A/C Receiver Drier P/N:83036
$17.99

Keep clean, moisture-free refrigerant moving through your air conditioning with the Four Seasons A/C Receiver Drier / Filter Drier 83036. It drops in as a direct-fit replacement for the 1998 Honda Passport [All].

The receiver drier acts as a filter, using a desiccant to draw moisture and contaminants out of the refrigerant — debris that flushing alone cannot remove — which is why it is replaced whenever the system is opened.

  • Aluminum housing: built with quality welds for a durable, leak-free design.
  • Moisture control: high-quality desiccant absorbs moisture and filters contaminants; the desiccant is not replaceable, so the complete unit is serviced as an assembly.
  • Install-ready: includes the necessary gasket/seal and O-rings (O-ring 24611 and O-ring 24650). Has a switch port; no service port and no sight glass. Mounting hardware is not included.
  • Connections: pad-mount inlet and outlet, both 3/8 in; roughly 7 in overall depth and 2.375 in (60.33 mm) diameter.

Four Seasons advises replacing the drier any time the system is serviced and to help validate the compressor warranty. If a saturated or contaminated drier is behind your poor A/C performance, this unit replaces it.

Interchange: 1510912 · 71249 · CWK709080 · 408943 · T83036 · 3709080 · 709080 · 11183036 · 19193693 · 807844 · 8871678410 · A88943 · 4782041 · 170027 · 171249. Manufacturer part number 83036.

This part cross-references / interchanges with the following part numbers:

1510912, 71249, CWK709080, 408943, T83036, 3709080, 709080, 11183036, 83036, 19193693, 807844, 8871678410, A88943, 4782041, 170027, 171249

Frequently Asked Questions

What does this receiver drier do?

It filters the A/C refrigerant, using a desiccant to absorb moisture and trap contaminants that flushing cannot remove, helping protect the rest of the system.

Does this fit my vehicle?

It is listed as a direct-fit replacement for the 1998 Honda Passport [All]. Check the Buyer's Guide tab to confirm the application for your vehicle.

Are gaskets and O-rings included?

Yes. The necessary gasket/seal and O-rings (O-ring 24611 and O-ring 24650) are included. Mounting hardware is not included.

Can I replace just the desiccant?

No. The desiccant is not replaceable, so the complete aluminum drier is serviced as one assembly.

Do I need to replace it when servicing the A/C?

Four Seasons advises replacing the drier any time the system is opened or serviced, and notes replacement helps validate the compressor warranty.
