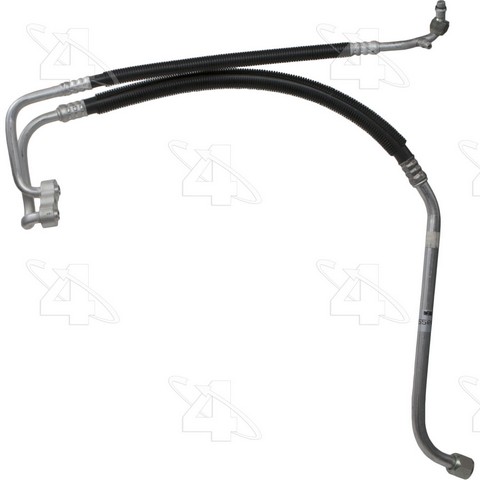

Four Seasons 55064 A/C manifold hose for the 1986 Buick LeSabre V6 3.0L, the 1986-1988 LeSabre V6 3.8L and other vehicles carries refrigerant out of the compressor and back to it. As an AC manifold hose assembly, it combines the discharge and suction lines in one assembly, and its hose works with R1234YF, R134A or R12 refrigerant.
- Every hose section uses double wall barrier hose
- Hose assembly built with a crimp fitting connection
- UNF O-Ring style connections at both the discharge and suction ends
- Application-specific hose design
- Engineered and tested for years of trouble-free operation
Quick facts
- Part: Four Seasons 55064 A/C manifold hose
- Also called: AC manifold hose assembly
- Fits: 1986 Buick LeSabre V6 3.0L, the 1986-1988 LeSabre V6 3.8L and other vehicles
- Material: Aluminum and rubber
A leaking A/C manifold hose can show up as warm air from the vents, oily residue around the fittings, or rubber that is cracked or rubbed through. Warm air alone does not prove the hose is at fault, since a worn compressor can also be behind it.
Fits
The vehicles it fits include the 1986-1988 Buick Century V6 3.8L and the 1986-1988 Buick Electra V6 3.8L. The 1986-1988 Buick Century V6 3.8L takes one, and so does every other vehicle it fits. If your Buick, Oldsmobile or Pontiac isn't named here, find it in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Discharge end style: UNF O-Ring
- Suction end style: UNF O-Ring
- End types: Female O-Ring at both ends
Build and materials
- Type: Discharge and suction line
- Material: Aluminum and rubber
- Hose: Double wall barrier hose
- Connection: Crimp fitting
- Refrigerant type: R134A
- Country of origin: China
In the box
One A/C manifold hose with four O-rings: one 24608, one 24612 and two 24632. This hose comes without a bracket or muffler, and the old bracket may not be reusable.
Frequently Asked Questions
Does the Four Seasons 55064 fit the 1986-1988 Buick Century V6 3.8L?
Yes. The Four Seasons 55064 A/C manifold hose fits the 1986-1988 Buick Century V6 3.8L; for a different model, look for your car in the "Vehicles it fits" section.
Will this A/C manifold hose work on the 1986 Buick LeSabre V6 3.0L and the 1986-1988 LeSabre V6 3.8L?
Yes. This A/C manifold hose fits the 1986 Buick LeSabre V6 3.0L and the 1986-1988 LeSabre V6 3.8L.
Which O-rings come with the Four Seasons 55064 hose?
The Four Seasons 55064 A/C manifold hose comes with four O-rings: one 24608, one 24612 and two 24632. This hose comes without a bracket or muffler.
Which refrigerant is this A/C manifold hose listed for?
This A/C manifold hose is listed for R134A refrigerant, and its double wall barrier hose also works with R1234YF or R12.
How can I spot a leak in the crimped fittings of this A/C manifold hose?
Oily residue at the crimped fittings, a cracked or chafed hose, and warm air from the vents can mean this hose is leaking. A shop can test the A/C system to locate the leak.
