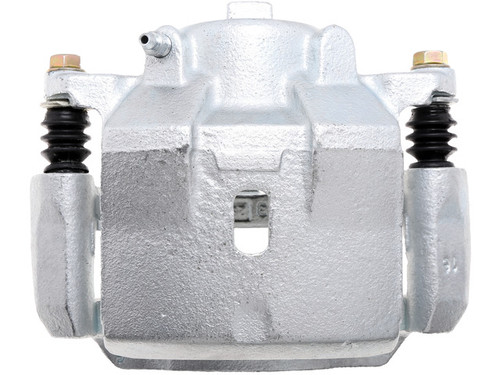

Raybestos Brakes FRC11620 front brake caliper for the 2004-2012 Chevrolet Malibu and other vehicles clamps the brake pads against the rotor to slow the wheel. This R-Line unit is a remanufactured, semi-loaded disc brake caliper and bracket assembly.
- Raybestos R-Line non-plated remanufactured caliper
- All-new rubber and sealing parts: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings
- Castings, guide pins and brackets inspected before they are reused
- 100% pressure tested for leak-free operation
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11620 brake caliper
- Also called: disc brake caliper
- Fits: 2004-2012 Chevrolet Malibu and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
Brake fluid seeping around the caliper, the car pulling to one side under braking, or brake drag you notice while driving can mean this caliper is worn or sticking, though a collapsed brake hose or a worn rotor can produce similar signs, so find the cause before you replace it.
Fits
This caliper is listed for a wide range of Chevrolet, Pontiac and Saturn models, led by the 2004-2012 Chevrolet Malibu, the 2005-2010 Pontiac G6 and the 2009-2010 Saturn Sky. Those cars take one caliper per side; this listing is the front right, the front left is ordered separately, and the two sides are normally replaced together. If your car is not named here, look up its year and model in the Vehicles it fits section.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1
- Piston diameter: 60.198 mm (2.370 in)
- Piston quantity: 1
- Bleeder screw thread: M10X1.00
- Bracket mounting hole: 12 mm, thread pitch 1.75 mm
- Casting number: 6035 R
Build and materials
- Type: floating, semi-loaded caliper
- Mounting bracket: included
- Casting material: cast iron
- Surface finish: coated (caliper and bracket)
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured semi-loaded caliper with its mounting bracket.
Interchange: 99-17351B · 16-4911A · 18-B4911A · 141.62141 · SC1166-1 · 14-4209
22705314
This part cross-references / interchanges with the following part numbers:
99-17351B, 16-4911A, 18-B4911A, 141.62141, SC1166-1, 22705314, 14-4209
Frequently Asked Questions
Is this the right Chevy Malibu brake caliper for a 2004-2012 Chevrolet Malibu?
Yes. Raybestos Brakes FRC11620 is listed for the 2004-2012 Chevrolet Malibu as the front right caliper. Other cars are in the Vehicles it fits section.
Is this a Pontiac G6 caliper for the 2005-2010 Pontiac G6?
Yes. This front right caliper is listed for the 2005-2010 Pontiac G6, and the car takes one per side.
What piston size does the Raybestos FRC11620 caliper have?
Raybestos Brakes FRC11620 has one piston measuring 60.198 mm (2.370 in) across, in a floating caliper with an M10X1.00 bleeder screw.
Does this remanufactured caliper come with its mounting bracket?
Yes. This semi-loaded unit is a caliper and bracket assembly, and the mounting bracket is included.
What gets replaced when an R-Line caliper is remanufactured?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts, and every caliper is 100% pressure tested.
