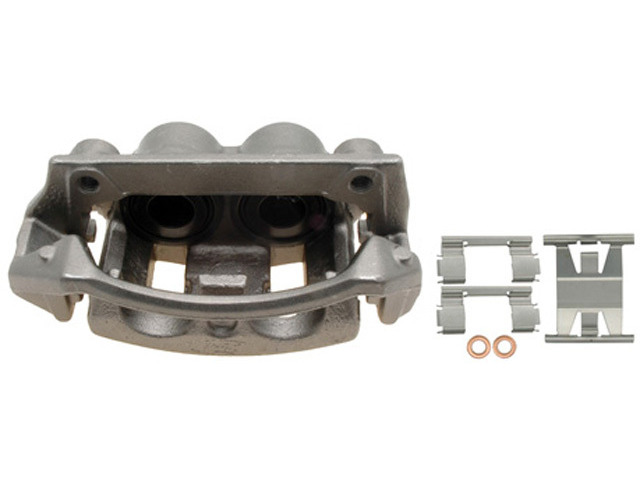

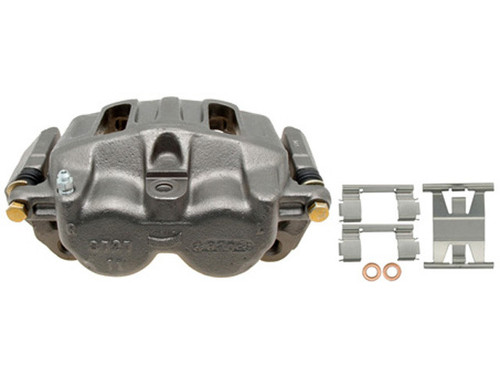

Clamp your brake pads with a factory-matched replacement using the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (MPN FRC10673). It's cataloged as the front-right unit and drops in as a direct-fit replacement for the 1997-2001 Ford F-150 [All] and the 2002 Lincoln Blackwood [All]. This R-Line non-plated unit is a remanufactured OE caliper rebuilt with all-new rubber and sealing components, then 100% pressure tested.
Remanufactured OE caliper: rebuilt with new seals, boots, and bleeders; castings, guide pins, and brackets are carefully inspected before reuse.
New for leak-free operation: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials.
EPDM70 rubber components for heat resistance, performance, and durability; silicone boots for heavy-duty applications where applicable.
Semi-loaded assembly: two pistons (2.000 in / 50.85 mm), floating cast-iron caliper with the mounting bracket included and a 3/8-24 bleeder screw thread. Materials match OE specifications.
Does this caliper come with a mounting bracket and hardware?
Yes. This is a semi-loaded caliper and bracket assembly, so the mounting bracket is included along with new abutment hardware and bleeder screws.
What brake fluid should I use: DOT 3, DOT 4, or DOT 5?
As a rule, always use the brake fluid recommended by the OE. The type is stamped on the master cylinder reservoir lid, and you should always use new fluid from a sealed container.
My vehicle pulls to one side when braking. Could the caliper be why?
Inspect both calipers for binding or sticky slides and pins, check that brake hoses aren't collapsed or restricted, and inspect steering and suspension components for proper operation.
What type of grease is used on the floating caliper mounting pins?
A silicone grease is used on floating caliper mounting pins.
Can I switch a phenolic-piston caliper for a steel-piston caliper, or vice versa?
Not recommended. OE manufacturers specified steel or phenolic pistons based on the vehicle's intended use, so follow the manufacturer's recommendations.
