Raybestos Brakes Disc Brake Caliper FRC12031
Raybestos Brakes Disc Brake Caliper FRC12031 - view 2
Raybestos Brakes Disc Brake Caliper FRC12031
Raybestos Brakes Disc Brake Caliper FRC12031 - view 2

Front Brake Caliper for 2008-2018 Chevrolet Silverado 1500 & More - Raybestos FRC12031

Be the first to review this product
$172.99
WARNING:California Proposition 65▾
MPN: FRC12031
UPC: 829352671313
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Caliper P/N:FRC12031
Raybestos Brakes Disc Brake Caliper P/N:FRC12031
$172.99

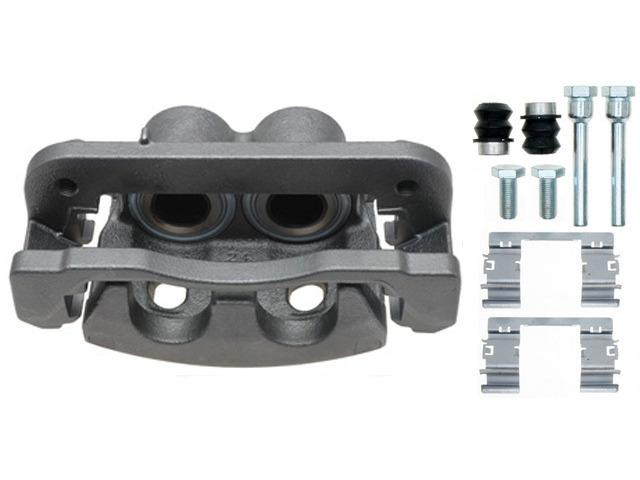

Replace a leaking or sticking front caliper with the Raybestos R-Line Remanufactured Brake Caliper and Bracket Assembly, part number FRC12031. This 100% pressure-tested unit is built from inspected OE castings with all-new rubber and sealing components. It fits many vehicles, among them the 2008-2018 Chevrolet Silverado 1500, 2008-2018 GMC Sierra 1500 and 2008-2020 Chevrolet Tahoe with all engines. See the Buyer's Guide tab for the full list.

Raybestos R-Line non-plated calipers are remanufactured OE parts. Castings, guide pins and brackets are carefully inspected before they are reused, and every caliper goes through rigorous testing.

  • New replacement parts: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials, intended to provide leak-free operation.
  • EPDM70 rubber components: used for heat resistance, performance and durability.
  • OE-matched materials: materials match OE specifications and vehicle-specific designs.
  • Specifications: floating caliper type with a cast iron casting and two pistons, each 2.003 in (50.876 mm) in diameter. The bleeder screw thread is M10X1.50, and the bracket mounting holes are M14 with a 2 mm thread pitch. The caliper and bracket have a coated finish. Casting numbers are K247-246C, Z5101 and L5101.

The mounting bracket is included. This caliper is cataloged for the front left and front right positions. It is sold individually, and this listing is for one caliper. Replacing both front calipers together is recommended for even, balanced braking. Country of origin: Mexico.

Interchange: 18-B4918A · 99-17399A · 18-4918A · 18-5480 · 18-5481 · 18-B4918AHD · 18-P4919A · 141.66051 · 142.66043 · 142.66051 · 14-4439
18B4918A · 9917399A · 184918A · 185480 · 185481 · 18B4918AHD · 18P4919A · 14166051 · 14266043 · 14266051 · 144439 · 23276880 · 23290150 · 22842351

This part cross-references / interchanges with the following part numbers:

18-B4918A, 99-17399A, 18-4918A, 18-5480, 18-5481, 18-B4918AHD, 18-P4919A, 23276880, 23290150, 141.66051, 142.66043, 142.66051, 22842351, 14-4439

Frequently Asked Questions

Which 2008-2020 Chevrolet Tahoe brake caliper position does FRC12031 fit?

It is cataloged for the front left and front right positions on the 2008-2020 Chevrolet Tahoe with all engines. Check the Buyer's Guide tab to confirm your vehicle.

Will this work as a 2008-2018 GMC Sierra 1500 brake caliper?

Yes. It is listed for the 2008-2018 GMC Sierra 1500 and the 2008-2018 Chevrolet Silverado 1500 with all engines, in the front left or front right position.

Is the mounting bracket included?

Yes. FRC12031 is a caliper and bracket assembly. The bracket is inspected before reuse and has a coated finish, like the caliper.

What are the key specifications of this disc brake caliper?

It is a floating, cast iron caliper with two 2.003 in (50.876 mm) pistons, an M10X1.50 bleeder screw thread and M14 bracket mounting holes with a 2 mm thread pitch.

What are signs a brake caliper may need replacing?

Common signs include brake fluid leaking at the caliper, pulling to one side when braking, a dragging brake or uneven pad wear. Diagnose the cause first, and bleed the brakes after installing.
