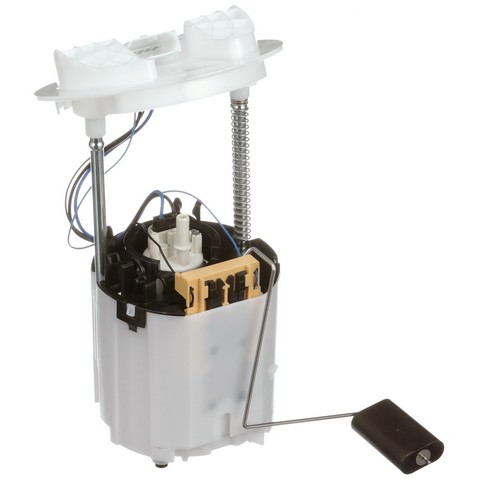

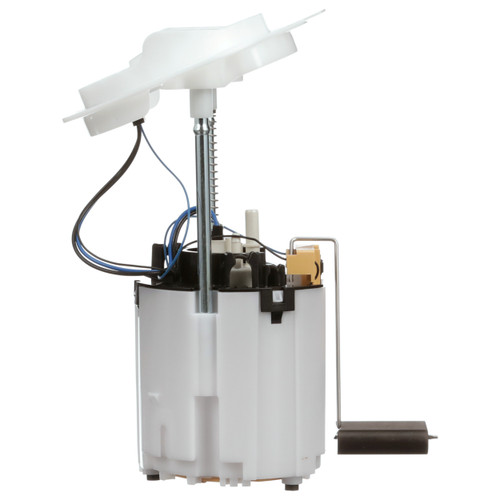

Delphi FG2479 left fuel pump module for the 2017-2019 Dodge Charger V8 5.7L and other vehicles is an in-tank electric pump that sends gas from the tank to the engine. The module, also called a fuel pump assembly, carries the float arm that tracks the fuel level.
- Empty float height and float retention match specifications for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Internal inlet strainer with a quick-connect outlet
- Validated and tested before it is matched to its application
Quick facts
- Part: Delphi FG2479 fuel pump module
- Also called: fuel pump assembly
- Fits: 2017-2019 Dodge Charger V8 5.7L and other vehicles
- Position: Left
- Material: Plastic housing
- Condition: New
Hard starting, sputtering or a fuel gauge that reads wrong can mean the module is wearing out. A clogged fuel filter, a blown fuse, a failed relay or wiring trouble can be behind these signs too, so track down the cause before you buy. The 2017-2019 Dodge Charger V8 5.7L takes one on the left side.
Fits
This Delphi fuel pump module fits the 2017-2019 Dodge Charger V8 5.7L, the 2017-2019 Dodge Challenger V6 3.6L or V8 5.7L, the 2017 Chrysler 300 V6 3.6L, the 2017-2019 300 V8 5.7L and the 2019 300 V6 3.6L. All Delphi fuel pumps are built to the company's OE standards.
Specifications
Fit and size
- Position: Left
- Quantity per vehicle: 1
- Outlet: 1, quick connect
- Terminals: 5, male blade

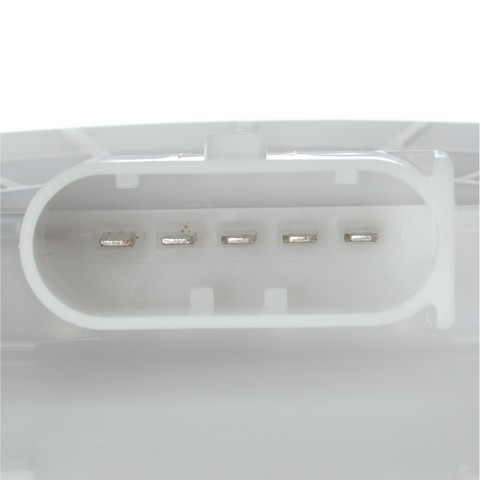

- Connector: 1, oval, female
Build and materials
- Type: electric in-tank pump for gas
- Housing material: Plastic
- Inlet: internal strainer, included
- Seal: included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm, one seal and one instruction sheet. Mounting hardware, a regulator and a lock ring are not included, and old hardware may not be reusable, so plan on new pieces.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the included instruction sheet for the steps.
Interchange: 6836 7534AA · 6836 7534AB · 6836 7534AC · 6836 7540AA
E7241M · DFG2479 · 67774 · P76270M · P76609M · RL136021AG · A30009 · A30378 · SP7048M
This part cross-references / interchanges with the following part numbers:
E7241M, DFG2479, 67774, P76270M, P76609M, 6836 7534AA, 6836 7534AB, 6836 7534AC, 6836 7540AA, RL136021AG, A30009, A30378, SP7048M
Frequently Asked Questions
Is the Delphi fuel pump module assembly FG2479 right for the 2017-2019 Dodge Charger V8 5.7L?
Yes. Delphi FG2479 is a left-side fuel pump module for the 2017-2019 Dodge Charger V8 5.7L, which takes one on the left side.
What comes with this Delphi module?
Delphi FG2479 comes with the float arm, a seal and an instruction sheet. Mounting hardware, a regulator and a lock ring are not included.
Is this Delphi fuel module an in-tank electric pump?
Yes. This Delphi FG2479 is an electric in-tank pump for gas, with an internal inlet strainer and a quick-connect outlet.
What signs can mean this left fuel pump module is wearing out?
Hard starts, sputtering or an odd fuel gauge reading can mean the module is wearing out. Fuel pressure testing needs the engine running, so have a shop do it.
Does Delphi FG2479 replace the 6836 7534AA part number?
Yes. 6836 7534AA is one of the cross-reference numbers listed for Delphi FG2479, and the Interchange line shows the rest.
