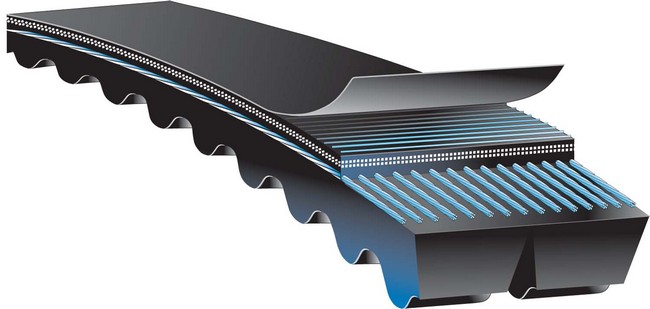

Gates 2/5VX800 accessory drive belt for the 1984-2001 Neoplan Bus and other vehicles joins two notched V-belt strands into one belt. The Gates accessory drive belt is made for drives where single belts vibrate, turn over or jump off the pulleys.
- Super HC PowerBand construction: two V-belt strands joined by a permanent, high-strength tie band that works as one unit
- Tie band gives high lateral rigidity and keeps the belt running straight on the drive
- Resists tensile and flexing forces, fatigue and shock loads for stable, smooth running on tough drives
- Strong band controls belt-to-belt distance and prevents sideways bending
- Flex-Weave cover, a patented fabric construction, protects the belt core from oil, contaminants and heat
- Flex-bonded cords are bonded to the belt body and absorb bending stress without cord deterioration
Quick facts
- Part: Gates 2/5VX800 accessory drive belt
- Fits: the 1984-2001 Neoplan Bus and other vehicles
- Position: Air conditioning
- Material: Ethylene Elastomer (EE)
- Condition: New
With the engine off and cool, a worn belt can show cracks, fraying or glazed sides, and a slipping one can squeal in normal driving. A worn pulley, a misaligned pulley or a seizing accessory bearing can be behind the same squeal or fast belt wear, so find the cause before you buy a belt.
Fits
The belt is listed for a wide range of bus models from Neoplan, New Flyer and Flxible, including the 1991 New Flyer D40 V6-9.0L and the 1991 New Flyer D40LF V6-9.0L, and each takes one belt. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Air conditioning
- Quantity per vehicle: 1
- Cross section: 5VX, 2 strands
- Top width: 1.25 in (32 mm), 0.62 in (16 mm) per strand
- Outside circumference: 80 in (2032 mm)
Build and materials
- Type: Narrow section molded notch joined V-belt, notched
- Belt material: Ethylene Elastomer (EE)
- Cord material: Polyester
- Temperature range: -22 °F to +140 °F (-30 °C to +60 °C)
- Standards: meets or exceeds RMA standards for static conductivity and heat and oil resistance
- Condition: New
- Country of origin: United States
Interchange: R5VX800-2
2GB5VX800 · 410324 · 41008769 · 99147152 · 97609500010 · T261013 · 023725 · 00013600003
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
2GB5VX800, 410324, 41008769, 99147152, 97609500010, T261013, 023725, 00013600003, R5VX800-2
Frequently Asked Questions
Is the Gates 2/5VX800 belt right for the 1984-2001 Neoplan Bus?
Yes. Gates 2/5VX800 is listed for the 1984-2001 Neoplan Bus, and each takes one belt. Open the "Vehicles it fits" section to check other buses and engines.
How wide is the Gates 2/5VX800 belt and how long is it?
Gates 2/5VX800 is a 5VX cross-section belt with two strands. Its top width is 1.25 in (32 mm) and its outside circumference is 80 in (2032 mm).
What are the belt and cords made of in this PowerBand belt?
The belt material is ethylene elastomer (EE) and the cord material is polyester. A Flex-Weave fabric cover protects the belt core from oil, contaminants and heat.
How can I tell if this joined V-belt is worn out?
With the engine off and cool, look for cracks, fraying or glazed sides. A squeal in normal driving can be a sign too, and a shop can check belt tension.
What temperature range can the Gates 2/5VX800 belt run in?
Gates 2/5VX800 has a temperature range of -22 °F to +140 °F (-30 °C to +60 °C).
