CVT Belt for 2024-2026 Polaris Sportsman 1000 XP S & More - Gates 23R3856

$142.99

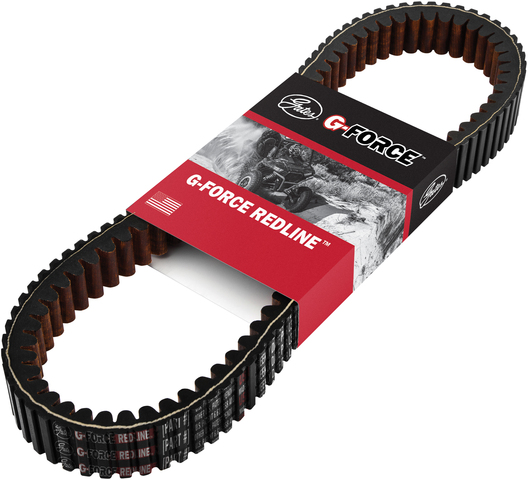

Gates Automatic Continuously Variable Transmission (CVT) Belt 23R3856
Gates Automatic Continuously Variable Transmission (CVT) Belt 23R3856

Vehicles this part fits
    Part number: 23R3856
    UPC: 770075813200
    Condition: New
    Weight: 1.05 LBS
    Item Package Quantity: 1
    $142.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:23R3856
    Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:23R3856
    $142.99
    $142.99

    Gates 23R3856 CVT belt for the 2024-2026 Polaris Sportsman 1000 XP S and other vehicles carries engine power through the continuously variable transmission. It is also called a CVT transmission belt.

    • G-Force RedLine CVT belt line, a new generation designed for acceleration, top speed and low energy loss in extreme off-road use
    • Crack- and wear-resistant construction for demanding applications
    • Heat resistance and recovery, even under severe duty cycles
    • Patented Ethylene Elastomeric (EE) compound with axial stiffness for higher continuous torques or loads
    • Tested under extreme conditions in controlled environments and on race vehicles

    Quick facts

    • Part: Gates 23R3856 CVT belt
    • Also called: CVT transmission belt
    • Fits: 2024-2026 Polaris Sportsman 1000 XP S and other vehicles
    • Position: Drive belt
    • Material: EPDM
    • Condition: New

    Cracks or fraying seen with the engine off, or slipping while riding, can mean the belt is worn. A worn drive clutch or driven clutch can be behind these signs too, so find the cause before buying a belt.

    Fits

    The 2024-2026 Polaris Sportsman 1000 XP S, the 2026 Polaris Sportsman 1000 XP Ultimate and the 2026 Polaris Sportsman 850 Touring Premium each take one of these belts, and it fits many more Polaris models. This listing is one belt. Running a different Polaris? Look up your own year and model under the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: drive belt
    • Quantity per vehicle: 1
    • Top width: 31 mm (1.232 in)
    • Outside circumference: 1009 mm (39.737 in)
    • Pitch length: 979.5 mm (38.563 in)
    • Pitch width: 29.5 mm (1.161 in)
    • Thickness: 14.4 mm (0.567 in)
    • Cross section designation: RVS-R

    Build and materials

    • Type: power sport specialty high performance CVT belt
    • Construction: double notched
    • Belt material: EPDM
    • Cord material: aramid
    • Grade type: OE Improved
    • Condition: new
    • Country of origin: United States

    Interchange: CTX2268 · XTX2268 · 23C3856 · 23G3856 · 3211160

    This part cross-references / interchanges with the following part numbers:

    CTX2268, XTX2268, 23C3856, 23G3856, 23R3856, 3211160

    Frequently Asked Questions

    Does the Gates G-Force RedLine CVT belt fit the 2026 Polaris Sportsman 1000 XP Ultimate?

    Yes. Gates 23R3856 fits the 2026 Polaris Sportsman 1000 XP Ultimate and the 2026 Polaris Sportsman 850 Touring Premium, and each takes one belt.

    What size is the Gates G-Force CVT belt 23R3856?

    Gates 23R3856 has a top width of 31 mm, an outside circumference of 1009 mm, a pitch length of 979.5 mm and a thickness of 14.4 mm.

    What is the Gates G-Force belt made of?

    The belt material is EPDM and the cord material is aramid. The construction is double notched.

    How can I tell if my Gates RedLine belt is worn?

    With the engine off, look for glazed sides or cracks. Lost acceleration while riding can also mean a worn belt.

    Does Gates 23R3856 replace XTX2268?

    Yes. XTX2268 is on the interchange list for Gates 23R3856, along with CTX2268, 23C3856, 23G3856 and 3211160.
