CVT Belt for 2018-2025 Argo Xplorer XRT 1000 LE - Gates 28R3856

$274.99

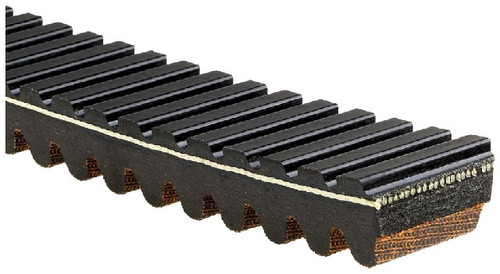

Gates Automatic Continuously Variable Transmission (CVT) Belt 28R3856

Gates Automatic Continuously Variable Transmission (CVT) Belt 28R3856 - view 2

Gates Automatic Continuously Variable Transmission (CVT) Belt 28R3856 - view 3

Gates Automatic Continuously Variable Transmission (CVT) Belt 28R3856 - view 4

Part number: 28R3856

UPC: 770075826477

Condition: New

Weight: 1.05 LBS

Item Package Quantity: 1

$274.99

Current Stock: 28

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:28R3856

$274.99

Description

Gates 28R3856 CVT belt for the 2018-2025 Argo Xplorer XRT 1000 LE transmits engine power through the continuously variable transmission.

G-Force RedLine series, the first of a new generation of Gates CVT belts
Patented Ethylene Elastomeric (EE) compound that maximizes axial stiffness for higher continuous torques or loads
Design aimed at acceleration and top speed, with less speed ratio and energy loss in extreme off-road use
Crack- and wear-resistant construction for durability in demanding applications
Greater heat resistance and recovery, even under severe duty cycles
Tested under extreme conditions in controlled environments and on race vehicles

Quick facts

Part: Gates 28R3856 CVT belt
Also called: cvt transmission belt
Fits: 2018-2025 Argo Xplorer XRT 1000 LE
Position: Drive belt
Material: EPDM
Condition: New

A cracked, frayed or glazed belt, or one that wears unevenly, can mean it is due for replacement. Slipping or a loss of drive can also come from worn clutch parts, so with the engine off and cool, look over the belt's surfaces for damage and find the cause before replacing it.

Fits

This belt is a direct-fit replacement for the 2018-2025 Argo Xplorer XRT 1000 LE, which takes one. This listing is a single belt.

Specifications

Fit and size

Position: drive belt
Quantity per vehicle: 1
Top width: 32 mm (1.277 in)
Thickness: 15.2 mm (.597 in)
Outside circumference: 1005 mm (39.56 in)
Pitch length: 979.5 mm (38.562 in)
Pitch width: 30 mm (1.2 in)
Cross section designation: RVS-R
Angle: 26°

Build and materials

Type: power sport specialty high performance CVT belt
Construction: double notched
Belt material: EPDM
Cord material: aramid
Grade type: OE Improved
Condition: new
Country of origin: United States

Interchange: 10348G

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

10348G, 28R3856

Buyer's Q&A

Frequently Asked Questions

Is the Gates 28R3856 belt right for the 2018-2025 Argo Xplorer XRT 1000 LE?

Yes. Gates 28R3856 is a direct-fit replacement for the 2018-2025 Argo Xplorer XRT 1000 LE, which takes one belt.

What are the dimensions of this CVT transmission belt?

The Gates 28R3856 has a top width of 32 mm, thickness of 15.2 mm, outside circumference of 1005 mm and pitch length of 979.5 mm. Its cross section designation is RVS-R and its angle is 26°.

What is this CVT belt made of?

The belt material is EPDM with aramid cord, and the construction is double notched. This part is made in the United States.

What wear should I look for on a Gates G-Force RedLine belt?

Cracks, fraying, glazing or uneven wear seen with the engine off can mean the belt is worn. A slipping or lost drive can also come from other drivetrain parts.

What does the EE compound do in the Gates G-Force RedLine belt?

The patented Ethylene Elastomeric (EE) compound in Gates 28R3856 maximizes axial stiffness, so the belt can run at higher continuous torques or loads. The belt was also tested on race vehicles.
