Gates 33R3836 CVT belt for the 2012-2014 Polaris Ranger Crew Diesel and other vehicles carries engine power through the continuously variable transmission. The belt runs between the drive and driven clutches and is also called a cvt transmission belt.

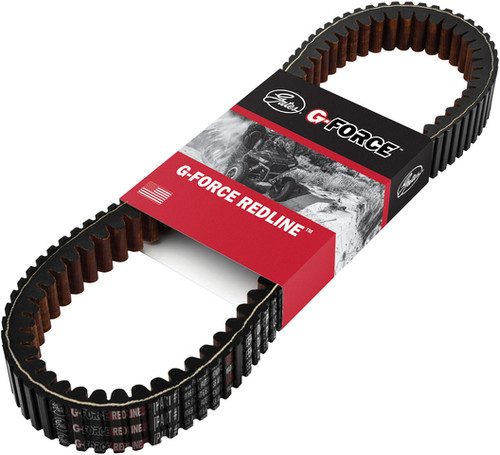

- Gates G-Force RedLine line, the first of a new generation of continuously variable transmission belts
- Design intended to improve acceleration and top speed and to cut speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction for the most demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Optimized, patented compound that maximizes axial stiffness for higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 33R3836 CVT belt
- Also called: cvt transmission belt
- Fits: the 2012-2014 Polaris Ranger Crew Diesel and other vehicles
- Position: Drive belt
- Material: EPDM belt with aramid cord
- Condition: New
Cracks, glazed or frayed edges, slipping or a loss of acceleration can mean this belt is worn, though a worn drive clutch or driven clutch can be behind the same signs, so find the actual cause before you replace the belt.
Fits
This belt fits the 2012-2014 Polaris Ranger Crew Diesel, the 2011-2014 Ranger Diesel and the 2014 Ranger Diesel HST, among others. The 2011-2014 Polaris Ranger Diesel takes one belt.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 34 mm (1.344 in)
- Outside circumference: 1003 mm (39.5 in)
- Pitch length: 974 mm (38.362 in)
- Pitch width: 31.9 mm (1.256 in)
- Thickness: 14.4 mm (0.567 in)
Build and materials
- Type: Power sport specialty high performance CVT belt

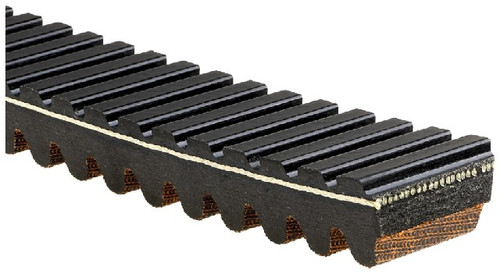

- Construction: Double notched
- Belt material: EPDM
- Cord material: Aramid
- Grade type: OE Improved
- Condition: New
- Country of origin: United States
Interchange: 33G3836 · XTX2256 · 33C3836 · 3211135 · UA455
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
33G3836, XTX2256, 33C3836, 33R3836, 3211135, UA455
Frequently Asked Questions
Does the Gates 33R3836 CVT belt fit the 2014 Polaris Ranger Diesel HST?
Yes, Gates 33R3836 fits the 2014 Polaris Ranger Diesel HST. If your Ranger is a different year or model, find it in the "Vehicles it fits" section on this product page.
What size is this CVT belt?
This belt is 34 mm wide at the top and 14.4 mm thick, with a 1003 mm outside circumference and a 974 mm pitch length.
What materials is this CVT belt made from?
The belt is EPDM with an aramid cord, in a double-notched construction.
How do I tell if my CVT belt is worn?
With the engine off and cool, look for cracks or glazed, frayed edges. Slipping or a loss of acceleration while driving can also be signs of a worn belt.
Was the Gates G-Force RedLine belt tested on race vehicles?
Yes. The Gates 33R3836 was tested under extreme conditions in controlled environments as well as on race vehicles.
