CVT Belt for 2009-2013 Kawasaki KAF950 Mule 4010 Diesel 4X4 & More - Gates 36R4368

$222.99

Gates Automatic Continuously Variable Transmission (CVT) Belt 36R4368

Gates Automatic Continuously Variable Transmission (CVT) Belt 36R4368 - view 2

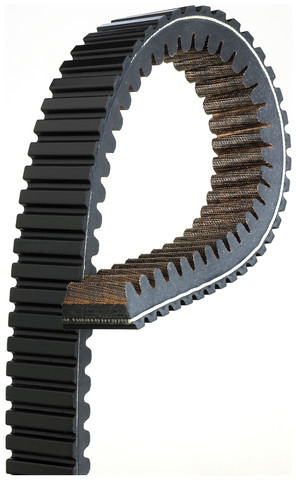

Gates Automatic Continuously Variable Transmission (CVT) Belt 36R4368 - view 3

Gates Automatic Continuously Variable Transmission (CVT) Belt 36R4368 - view 4

Part number: 36R4368

UPC: 770075815969

Condition: New

Weight: 1.28 LBS

Item Package Quantity: 1

$222.99

Current Stock: 66

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

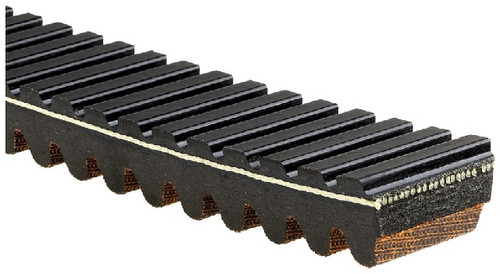

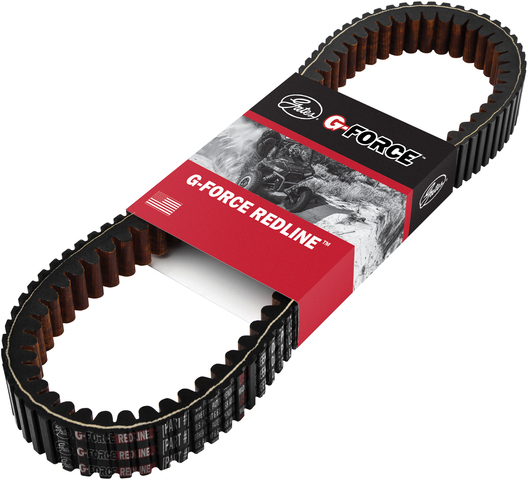

Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:36R4368

$222.99

Description

Gates 36R4368 CVT belt for the 2009-2013 Kawasaki KAF950 Mule 4010 Diesel 4X4 and other vehicles transfers torque between the pulleys of a continuously variable transmission. The double-notched belt is a power sport specialty design.

Gates G-Force RedLine series, the first of a new generation of CVT belts
Design that improves acceleration and top speed and cuts speed ratio and energy loss in extreme off-road environments
Crack- and wear-resistant construction for demanding applications
Heat resistance and recovery, even under severe duty cycles
Optimized, patented compound that maximizes axial stiffness for higher continuous torques or loads
Tested under extreme conditions in controlled environments and on race vehicles

Quick facts

Part: Gates 36R4368 CVT belt
Also called: cvt transmission belt
Fits: 2009-2013 Kawasaki KAF950 Mule 4010 Diesel 4X4 and other vehicles
Position: Drive belt
Material: EPDM belt, aramid cord
Condition: New

Cracks, fraying, missing notches, slipping or a loss of drive can mean a Gates CVT belt is worn. With the engine off and cool, look the belt over and measure its width against the 35 mm top width before replacing it, since other drive parts can show similar signs.

Fits

Fitment includes the 2009-2013 Kawasaki KAF950 Mule 4010 Diesel 4X4, the 2009-2013 Kawasaki KAF950 Mule 4010 Trans 4X4 Diesel and the 2003-2008 Kawasaki KAF950 Mule 3010 Diesel 4X4. One belt runs the CVT drive, and this listing is that single belt.

Specifications

Fit and size

Position: Drive belt
Quantity per application: 1
Top width: 35 mm (1.362 in)
Pitch width: 32.5 mm (1.28 in)
Thickness: 15.2 mm (.597 in)
Outside circumference: 1139 mm (44.851 in)
Pitch length: 1109 mm (43.677 in)
Cross section designation: RVS-R
Angle: 28°

Build and materials

Type: Power sport specialty high performance CVT belt
Construction: Double notched
Belt material: EPDM
Cord material: Aramid
Grade type: OE Improved
Condition: New
Country of origin: United States

Interchange: 59011-1087
XTX2253 · 36GBS1150 · 36C4368 · 36G4368 · UA481

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

XTX2253, 36GBS1150, 59011-1087, 36C4368, 36G4368, 36R4368, UA481

Buyer's Q&A

Frequently Asked Questions

Does the Gates 36R4368 fit the 2009-2013 Kawasaki KAF950 Mule 4010 Diesel 4X4?

Yes, Gates 36R4368 fits the 2009-2013 Kawasaki KAF950 Mule 4010 Diesel 4X4 and many other vehicles. For your own year and model, look in the "Vehicles it fits" section on this page.

What are the belt and cord materials on the 36R4368?

Gates 36R4368 has an EPDM belt with aramid cord and a double-notched construction. It is a power sport specialty high performance CVT belt.

What size is the CVT transmission belt 36R4368?

This belt has a pitch length of 1109 mm (43.677 in), a pitch width of 32.5 mm (1.28 in) and a thickness of 15.2 mm (.597 in). Its top width is 35 mm and the cross section designation is RVS-R.

How can I tell if a CVT belt is worn out?

With the engine off and cool, look for cracks, fraying or missing notches, and measure the width against the 35 mm top width. Slipping or lost drive in normal use can also point to wear.

Was the G-Force RedLine CVT belt tested under extreme conditions?

Yes, it was tested under extreme conditions in controlled environments and on race vehicles. Its patented compound is made to run at higher continuous torques or loads.
