CVT Belt for 2016-2019 Polaris 550 Widetrak LX & More - Gates 41G4651

$106.99
Gates Automatic Continuously Variable Transmission (CVT) Belt 41G4651
Gates Automatic Continuously Variable Transmission (CVT) Belt 41G4651

Vehicles this part fits
    Part number: 41G4651
    UPC: 770075469940
    Condition: New
    Weight: 1.36 LBS
    Item Package Quantity: 1
    $106.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

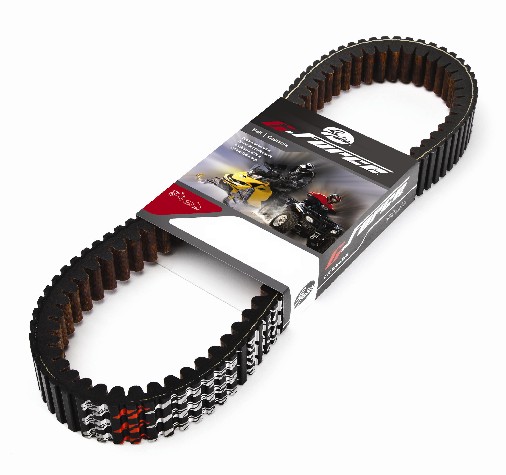

    Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:41G4651
    Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:41G4651
    $106.99
    $106.99

    Gates 41G4651 CVT belt for the 2016-2019 Polaris 550 Widetrak LX and other vehicles carries engine power through the continuously variable transmission.

    • G-Force WorkHorse line belt engineered for demanding tasks and trails, optimized for engines under 800cc
    • Improved durability with crack and wear resistance
    • Proprietary Ethylene Elastomer (EE) compound for improved axial stiffness and heat tolerance, with less heat fade and less speed loss
    • High tensile aramid cord for acceleration, shock load resistance and extreme fatigue resistance

    Quick facts

    • Part: Gates 41G4651 CVT belt
    • Also called: CVT transmission belt
    • Fits: 2016-2019 Polaris 550 Widetrak LX and other vehicles
    • Position: Drive belt
    • Material: Ethylene Elastomer belt, aramid cord
    • Condition: New

    Cracks, slipping or lost speed under load can mean the belt is worn. Before you replace it, have the clutches checked too, since they can affect takeoff and top speed. The belt lasts up to 2x as long as the original G-Force belt, but it is not for turbocharged or heavily modified engines.

    Fits

    Popular fits are the 2016-2019 Polaris 550 Widetrak LX, the 1997-2011 Polaris Widetrak LX and the 2002-2003 Polaris Trail Touring, with one belt per vehicle. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: Drive belt
    • Quantity per vehicle: 1
    • Top width: 36 mm (1.406 in)
    • Outside circumference: 1210 mm (47.625 in)
    • Angle: 28°
    • Cross section designation: RVS-R

    Build and materials

    • Type: Power Sport CVT belt
    • Construction: Double notched
    • Belt material: Ethylene Elastomer
    • Cord material: Aramid
    • Condition: New
    • Country of origin: United States

    Interchange: 138-4716U3 · 138-4716U4
    MAX1105M2 · HPX5013 · 36GBSSV1204 · 71259 · 3211070 · MAX1105M3

    This part cross-references / interchanges with the following part numbers:

    138-4716U3, MAX1105M2, 41G4651, HPX5013, 36GBSSV1204, 71259, 3211070, 138-4716U4, MAX1105M3

    Frequently Asked Questions

    Does the Gates 41G4651 fit the 1997-2011 Polaris Widetrak LX?

    Yes. Gates 41G4651 fits the 1997-2011 Polaris Widetrak LX, and each machine takes one belt.

    How wide and long is the Gates 41G4651 CVT belt?

    This belt has a top width of 36 mm (1.406 in) and an outside circumference of 1210 mm (47.625 in), with a 28° angle.

    What is this CVT transmission belt made of?

    The belt body is Ethylene Elastomer with an aramid cord. It has double notched construction.

    Can this belt go on a turbocharged or heavily modified engine?

    No. Gates 41G4651 is not for turbocharged or heavily modified engines, and it is optimized for engines with less than 800cc.

    Is 3211070 an interchange number for this Gates belt?

    Yes. 3211070 is listed as an interchange number for Gates 41G4651, along with the other numbers on the Interchange line.
