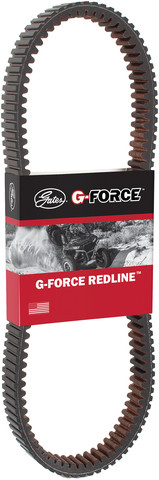

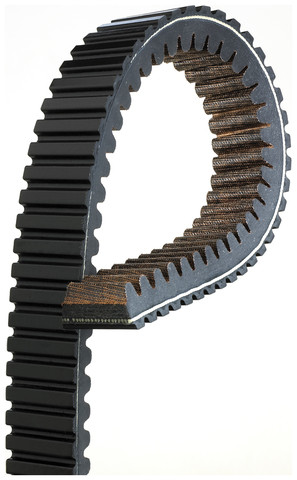

Gates 42R4266 CVT belt for the 2012-2019 Ski-Doo Renegade Sport 600 Ace and other vehicles carries engine power through the continuously variable transmission. It belongs to the G-Force RedLine line and is built for hard off-road use.
- G-Force RedLine series, a new generation of Gates CVT belts
- Design delivers stronger acceleration, higher top speeds, and less speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction for the most demanding applications
- Greater heat resistance and recovery under severe duty cycles
- Patented, optimized compound maximizes axial stiffness for higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 42R4266 CVT belt
- Also called: cvt transmission belt
- Fits: the 2012-2019 Ski-Doo Renegade Sport 600 Ace and other vehicles
- Position: Drive belt
- Material: EPDM belt with aramid cord
- Condition: New
A worn belt can show up as slipping, weak acceleration or visible cracking. Before you replace the belt, rule out clutch wear and other drive problems, since slipping and poor acceleration can have more than one source.
Fits
The vehicles it fits include the 2012-2019 Ski-Doo Renegade Sport 600 Ace, the 2014-2026 Ski-Doo Tundra Sport Ace 600 and the 2025-2026 Kawasaki KAF820 Mule Pro-FX 820 EPS, along with many other vehicles.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 36 mm (1.406 in)
- Outside circumference: 1114 mm (43.875 in)
- Pitch length: 1083 mm (42.657 in)
- Pitch width: 34 mm (1.339 in)
- Thickness: 15.9 mm (0.627 in)
- Angle: 26 degrees
Build and materials
- Type: Power sport specialty high performance CVT belt

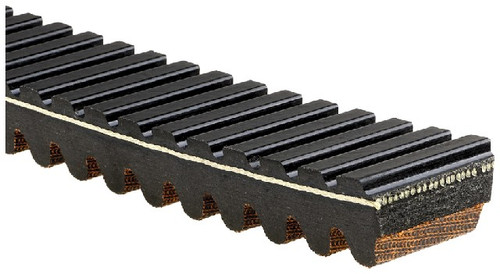

- Construction: Double notched
- Belt material: EPDM
- Cord material: Aramid
- Condition: New
- Country of origin: United States
In the box
One CVT belt. This listing holds one belt, and one belt is needed per vehicle.
Interchange: 0627-034 · 146-4440U3 · 59011-0037 · 144-4353U4 · 146-4440U4
417300127 · 417300585 · 42G4266 · XTX2280 · XTX5028 · DBKA0037EX · DBWH0037 · 71252 · 71256 · 42C4266 · UA482 · XS810
This part cross-references / interchanges with the following part numbers:
0627-034, 417300127, 417300585, 146-4440U3, 42G4266, XTX2280, XTX5028, DBKA0037EX, DBWH0037, 71252, 71256, 59011-0037, 42C4266, 42R4266, 144-4353U4, 146-4440U4, UA482, XS810
Frequently Asked Questions
Does the Gates 42R4266 fit the 2014-2026 Ski-Doo Tundra Sport Ace 600?
Yes. Gates 42R4266 fits the 2014-2026 Ski-Doo Tundra Sport Ace 600 and many other vehicles. If your machine isn't named here, look up its year and model in the "Vehicles it fits" section.
What size is the Gates 42R4266 CVT belt?
Gates 42R4266 has a top width of 36 mm, an outside circumference of 1114 mm, a pitch length of 1083 mm, a pitch width of 34 mm and a thickness of 15.9 mm.
What is this CVT belt made of?
The belt material is EPDM, with an aramid cord. The belt has double-notched construction.
Is the Gates 42R4266 a cvt transmission belt?
Yes. Gates 42R4266 is a G-Force RedLine belt that carries power through the continuously variable transmission.
How can I tell this CVT belt is worn?
Visible cracks or fraying, seen with the engine off and cool, or slipping under power can mean the belt is worn. A shop can check the clutches too.
