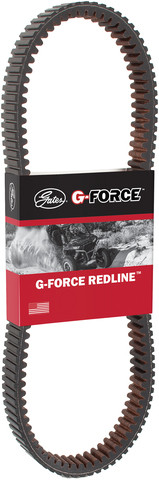

Gates 48R4738 CVT belt for the 2021-2024 Arctic Cat Norseman X 8000 and other vehicles transfers engine power through the continuously variable transmission.
- Gates G-Force RedLine CVT belt, the first of a new generation of CVT belts
- Design for acceleration and top speed, with less speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction for demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Patented compound that maximizes axial stiffness for higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 48R4738 CVT belt
- Also called: CVT transmission belt
- Fits: 2021-2024 Arctic Cat Norseman X 8000 and other vehicles
- Position: Drive belt
- Material: EPDM belt, aramid cord
- Condition: New
Cracks, missing notches or slipping can mean the belt is worn. If the belt is the cause, this one replaces it. Slipping can also come from the clutches, so look over the belt and the clutch faces with the engine off and cool before you order.
Fits
The fitment includes the 2021-2024 Arctic Cat Norseman X 8000, the 2022-2024 Arctic Cat M 8000 Hardcore Alpha One 146 and the 2020-2024 Arctic Cat M 8000 Hardcore Alpha One 154. If your snowmobile is not named here, look up its model and year in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Drive belt
- Quantity per application: 1
- Cross section designation: RVS-R
- Angle: 26
- Top width: 38 mm (1.478 in)
- Outside circumference: 1233 mm (48.554 in)
- Pitch length: 1204 mm (47.381 in)
- Pitch width: 35.6 mm (1.402 in)
- Thickness: 15.9 mm (0.627 in)
Build and materials
- Type: Power Sport Specialty High Performance CVT belt
- Construction: Double notched
- Belt material: EPDM
- Cord material: Aramid
- Grade type: OE Improved
- Condition: New
- Country of origin: United States
In the box
One CVT belt, and the 2021-2024 Arctic Cat Norseman X 8000 takes one.
Interchange: 0627-111 · 8NV-E7641-00 · 8NV-E7641-00-00
RPX5061 · XTX5061 · DBAC111 · 48C4738 · 48G4738
This part cross-references / interchanges with the following part numbers:
0627-111, RPX5061, XTX5061, DBAC111, 48C4738, 48G4738, 48R4738, 8NV-E7641-00, 8NV-E7641-00-00
Frequently Asked Questions
Does the Gates 48R4738 belt fit the 2022-2024 Arctic Cat M 8000 Hardcore Alpha One 146?
Yes, the Gates 48R4738 CVT belt fits the 2022-2024 Arctic Cat M 8000 Hardcore Alpha One 146 and the 2021-2024 Arctic Cat Norseman X 8000. For another snowmobile, look up its model and year in the "Vehicles it fits" section.
What are the dimensions of the Gates 48R4738 belt?
The Gates 48R4738 has a 38 mm top width, a 1233 mm outside circumference, a 1204 mm pitch length, a 35.6 mm pitch width and a 15.9 mm thickness.
What is this CVT transmission belt made of?
The belt material is EPDM and the cord material is aramid. The construction is double notched.
How can I tell if my CVT belt is worn?
Cracks, missing notches or slipping under load can be signs of wear. A look with the engine off and cool will show the first two.
Does the Gates 48R4738 replace belt number 48C4738?
Yes, 48C4738 is one of the numbers this belt replaces, along with 48G4738 and 8NV-E7641-00.
