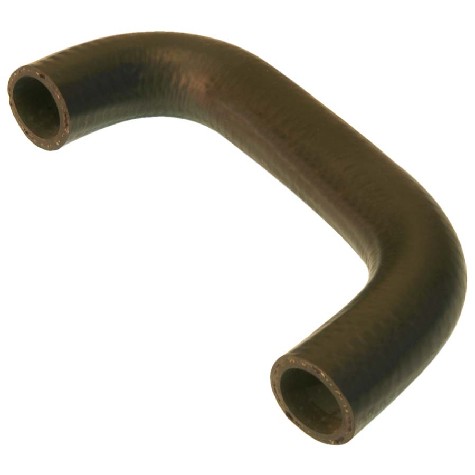

Gates 22063 coolant bypass hose for the 1989-1994 Nissan Maxima V6 3.0L and other vehicles carries engine coolant between connected points in the cooling system.
- Specifically engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped molded form for a properly sealed connection
- EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4 class D2 and DIN 73411 class A, except for tolerances
- Temperature range of -40°F to +257°F (-40°C to +125°C)
Quick facts
- Part: Gates 22063 coolant bypass hose
- Also called: engine coolant bypass hose
- Fits: 1989-1994 Nissan Maxima V6 3.0L and other vehicles
- Material: EPDM
- Condition: New
A hose that is cracked, soft, swollen or weeping coolant at its ends can mean it is due for replacement. A loose clamp, a tired thermostat or a seeping water pump can also be behind coolant loss, so trace the source before you buy a hose. Look it over only with the engine off and cool.
Fits
It fits the 1989-1994 Nissan Maxima V6 3.0L, the 1993-1998 Nissan Quest V6 3.0L and the 1999-2002 Quest V6 3.3L, and the 1993-1998 Mercury Villager V6 3.0L and the 1999-2002 Villager V6 3.3L. This listing is one hose, and each of those engines takes a single one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Centerline length: 11.5 in (292 mm)
- Inside diameter: 1.05 in (27 mm) at both ends
- Branch quantity: 0
Build and materials
- Material: EPDM
- Construction: molded
- Internal spring: none
- Condition: New
- Country of origin: United States
Installation notes
- Replace the hose clamps each time a new coolant hose is installed.
- Not for fuel or oil transfer applications.
Interchange: F3XY 8597 A · KM-2463
14241S · 1405585E00 · 71750 · B71750 · KM2363 · 63299 · CH2259 · C2063 · 8744
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
14241S, 22063, 1405585E00, 71750, B71750, F3XY 8597 A, KM2363, 63299, CH2259, C2063, KM-2463, 8744
Frequently Asked Questions
Does the Gates 22063 coolant bypass hose fit a 1999-2002 Nissan Quest V6 3.3L?
Yes. Gates 22063 fits the 1999-2002 Nissan Quest V6 3.3L, and it also fits the 1993-1998 Quest V6 3.0L.
What are the end sizes and length of the Gates 22063 hose?
Both ends have a 27 mm (1.05 in) inside diameter, and the centerline length is 292 mm (11.5 in). Gates 22063 is a molded hose with no branches.
What is this engine coolant bypass hose made of?
The tube and the cover are EPDM, with synthetic fiber knit reinforcement. The cover resists heat, ozone and chemical coolants.
Do I need new hose clamps when I install this coolant hose?
Yes, plan on new clamps. Hose clamps should be replaced each time a new coolant hose goes on.
Does Gates 22063 interchange with part number KM-2463?
Yes. KM-2463 is one of the numbers on the Interchange line for this hose, along with 71750, 63299 and several others.
