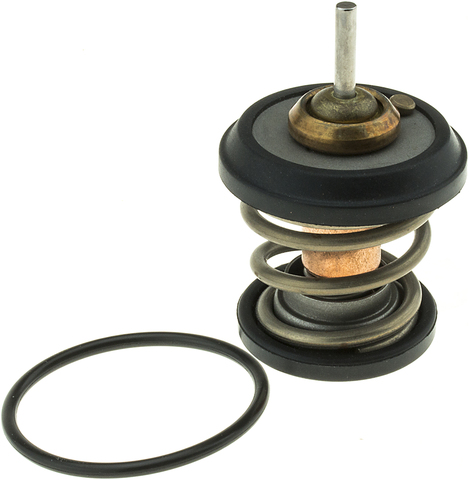

Gates 34804 thermostat for the 2009-2015 Audi A4 4-cylinder 2.0L and other vehicles controls coolant flow to hold the engine at its operating temperature. This Gates thermostat is an OE Type unit made for precise temperature control and a leak-free, OEM-equivalent fit.
- Quality-controlled factory calibration keeps opening and closing accurate despite pressure changes
- Jiggle pin with a weep hole and one check valve for air venting
- Reverse poppet design with an O-ring seal
- Starts to open at 203°F (95°C)
- Steel and copper construction
Quick facts
- Part: Gates 34804 thermostat
- Also called: engine coolant thermostat
- Fits: the 2009-2015 Audi A4 4-cylinder 2.0L and other vehicles
- Material: Steel, Copper
- Condition: New
A thermostat that sticks can show up as an engine that runs hot, slow warm-up or weak cabin heat. A low coolant level, a weak radiator cap, a tired water pump or a stuck cooling fan can be behind those signs as well, so find the cause before you buy. If the thermostat is the cause, this one replaces it.
Fits
It is a VW Tiguan thermostat for the 2009-2017 4-cylinder 2.0L, and it also fits the 2009-2015 Audi A4 4-cylinder 2.0L and the 2008-2010 Volkswagen Jetta 4-cylinder 2.0L. If your car is not named here, look it up by year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Height: 2.96 in
- Height between flanges: 2.07 in
- Flange height: 0.89 in
- Sealing flange outside diameter: 1.77 in
- Bypass flange diameter: 1.45 in
Build and materials
- Type: OE Type thermostat, OE Performance grade
- Design: reverse poppet
- Start to open temperature: 203°F (95°C)
- Seal: O-ring
- Jiggle pin weep hole: yes
- Material: steel and copper
- Condition: New
- Country of origin: China
In the box
One thermostat with one O-ring seal. This listing is one thermostat, and each vehicle takes one. A gasket and an installation tool are not included.
Interchange: 707-203
06H121113B
This part cross-references / interchanges with the following part numbers:
707-203, 34804, 06H121113B
Frequently Asked Questions
Is this the right Audi A4 thermostat for the 2009-2015 4-cylinder 2.0L?
Yes. Gates 34804 is listed for the 2009-2015 Audi A4 with the 4-cylinder 2.0L, and each of those cars takes one.
Is this a Volkswagen Jetta thermostat for the 2008-2010 4-cylinder 2.0L?
Yes. Gates 34804 is listed for the 2008-2010 Volkswagen Jetta with the 4-cylinder 2.0L, one per car.
Does Gates 34804 come with an O-ring or a gasket?
It comes with one O-ring seal and no gasket. An installation tool is not included.
Is this engine coolant thermostat an OE Type unit?
Yes. It is an OE Type thermostat in the OE Performance grade, with factory calibration for accurate opening and closing.
At what temperature does this thermostat start to open?
It starts to open at 203°F (95°C). It has a reverse poppet design and a jiggle pin with a weep hole for air venting.
