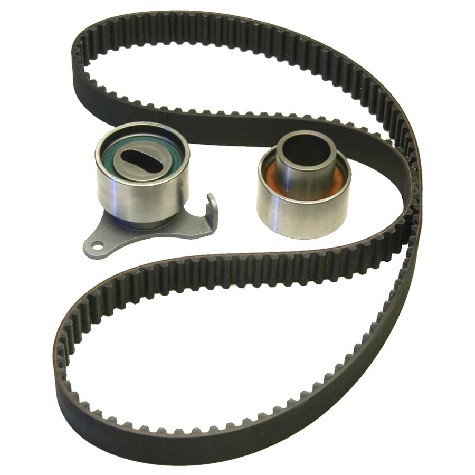

Gates TCK233 timing belt component kit for the 1988-1994 Toyota Tercel 4-cylinder 1.5L replaces the belt, tensioner and idler of the timing drive. This Gates timing belt kit, also called an engine timing belt component kit, keeps the camshaft in step with the crankshaft.
- Gates PowerGrip timing component kit line
- Belt, tensioner and idler together in one kit
- HSN belt with 127 teeth, 24 mm (0.945 in) wide, Curvilinear (II) tooth type
- Spring-type tensioner
Quick facts
- Part: Gates TCK233 timing belt component kit
- Also called: engine timing belt component kit
- Fits: 1988-1994 Toyota Tercel 4-cylinder 1.5L
- Material: HSN (belt)
- Condition: New
Ticking or rattling from the timing cover area, rough running, or a belt that has reached its replacement interval can mean the belt, tensioner or idler is worn. A failing water pump or crankshaft position sensor can sit behind some of those signs too, so pin down the actual cause before you buy.
Fits
It is a direct-fit kit for the 1988-1994 Toyota Tercel 4-cylinder 1.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Components in kit: 3 (belt, tensioner, idler)
- Belt width: 24 mm (0.945 in)
- Belt teeth: 127
Build and materials
- Condition: New
- Belt material: HSN
- Tooth type: Curvilinear (II)
- Tensioner type: Spring
- Grade type: OE Exact
- Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals, covering parts, labor and other associated costs
- Country of origin: Japan
In the box
One timing belt, one spring tensioner and one idler. This listing holds one kit, and the 1988-1994 Toyota Tercel 4-cylinder 1.5L takes one. A water pump is not included.
Installation notes
- Installation instructions, sheet 0098-0090, come with the kit.
Interchange: 2470-0233
BK233 · TB233K1 · 95233K1 · 95233K1S · GTK0233 · TTIK039 · 2522330
This part cross-references / interchanges with the following part numbers:
TCK233, BK233, TB233K1, 95233K1, 95233K1S, 2470-0233, GTK0233, TTIK039, 2522330
Frequently Asked Questions
Is this Gates timing belt component kit made for the 1988-1994 Toyota Tercel 4-cylinder 1.5L?
Yes. Gates TCK233 is listed for the 1988-1994 Toyota Tercel 4-cylinder 1.5L, and that engine takes one kit.
Does Gates TCK233 work as a Gates timing belt and water pump kit?
No. Gates TCK233 is a belt, tensioner and idler kit with no water pump in it. The water pump quantity is 0, so a pump is a separate part.
What are the belt specs in the Gates PowerGrip timing belt kit TCK233?
The HSN belt has 127 teeth, a Curvilinear (II) tooth type and a width of 24 mm (0.945 in). The tensioner is a spring type.
Does the TCK233 kit come with installation instructions?
Yes. Instruction sheet 0098-0090 comes with the kit, along with the timing belt, spring tensioner and idler.
Is TB233K1 an interchange number for Gates TCK233?
Yes. TB233K1 is one of the numbers listed as interchanging with Gates TCK233, along with 2470-0233, BK233 and 95233K1.
