Gates TCK312 timing belt component kit for the 2001-2005 Honda Civic 4-cylinder 1.7L and other vehicles replaces the timing belt and tensioner together. This Gates timing belt kit, also sold as an engine timing belt component kit, keeps the camshaft and crankshaft turning in step.
- Gates PowerGrip Timing Component Kit (TCK) line
- HSN belt material
- 104-tooth belt, 22 mm (0.866 in) wide, with modified curvilinear (III) teeth
- Spring-type tensioner supplied with a spring and damper
Quick facts
- Part: Gates TCK312 timing belt component kit
- Also called: engine timing belt component kit
- Fits: 2001-2005 Honda Civic 4-cylinder 1.7L and other vehicles
- Material: HSN belt
- Condition: New
Noise from the timing cover area can mean the belt or tensioner is wearing out. A worn pulley or a loose cover can be behind that noise too, so find the cause before you buy a kit.
Fits
It fits the 2001-2005 Honda Civic 4-cylinder 1.7L and the 2001-2005 Acura EL 4-cylinder 1.7L, and each takes one kit. The kit is OE-equivalent in service life, quality and performance.
Specifications
Fit and size
- Quantity per vehicle: 1
- Belt width: 22 mm (0.866 in)
- Belt teeth: 104
- Components in the kit: 4
Build and materials
- Belt material: HSN
- Tooth type: Modified curvilinear (III)
- Tensioner type: Spring
- Grade type: OE Exact
- Condition: New
- Gates warranty: matches the original manufacturer's timing belt replacement intervals and covers parts, labor and other associated costs
- Country of origin: Japan
In the box

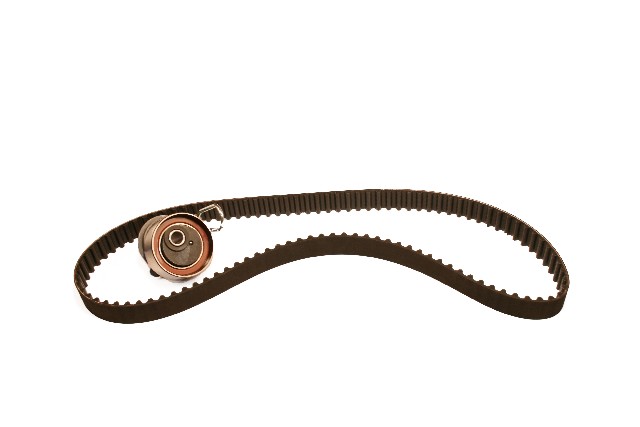

One belt, one tensioner, one bolt and one spring with damper, with an instruction sheet.
Installation notes
- Detailed installation instructions come with the kit as instruction sheet 0098-1674.
- The kit is designed for technicians doing a complete system replacement.
Interchange: 2435-0312
BK312 · TB312K1 · 95312K1 · 95312K1S · GTK0312 · 2523120 · VKMA93616 · VKMA93616S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TCK312, BK312, TB312K1, 95312K1, 95312K1S, 2435-0312, GTK0312, 2523120, VKMA93616, VKMA93616S
Frequently Asked Questions
Is this the timing belt kit for a 2004 Honda Civic in the 2001-2005 Honda Civic 4-cylinder 1.7L range?
Yes. Gates TCK312 fits the 2001-2005 Honda Civic 4-cylinder 1.7L, and each car takes one kit.
Is this a Gates timing belt and water pump kit?
No. Gates TCK312 holds a belt, tensioner, bolt and spring with damper. No water pump or idler is included, so a water pump would be a separate part.
How many teeth and how wide is the belt in the Gates timing belt component kit?
The belt has 104 teeth and is 22 mm (0.866 in) wide, with modified curvilinear (III) teeth.
How can I tell if the belt in this kit is worn?
A worn timing belt can show cracks, fraying or missing teeth, but it sits behind a cover, so a shop can inspect it with the engine off and cool.
Do the instructions come with the Gates TCK312 kit?
Yes. Instruction sheet 0098-1674 comes with the Gates TCK312 kit and gives the installation steps.
