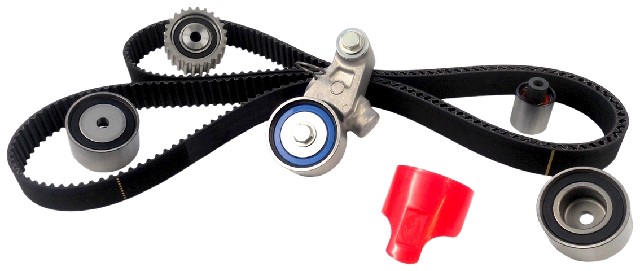

Gates TCK328N timing belt component kit for the 2004-2013 Subaru Forester H4 2.5L and other vehicles replaces the timing belt together with its hydraulic tensioner and idlers. Some catalogs list it as an engine timing belt component kit. The belt, tensioner and idlers come together, so they can be changed in one job.
- Part of the Gates PowerGrip line of Timing Component Kits (TCK)
- Hydraulic tensioner in OE Exact grade
- Belt with 281 teeth, a Modified Curvilinear (III) tooth type and timing marks
- Three idlers and an idler sprocket
Quick facts
- Part: Gates TCK328N timing belt component kit
- Also called: engine timing belt component kit
- Fits: 2004-2013 Subaru Forester H4 2.5L and other vehicles
- Material: HSN belt
- Condition: New
A cracked or frayed belt, oil on the belt or noise from the timing area can mean the kit is due. These signs alone do not prove the kit is at fault, since a loose accessory belt can make similar noise. The 2004-2013 Subaru Forester H4 2.5L takes one kit.
Fits
As a Gates timing belt kit for Subaru, it is listed for a wide range of models, led by the 2003-2005 Subaru Impreza H4 2.0L and the 2004-2014 Impreza H4 2.5L, and the 2005-2009 Subaru Outback H4 2.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Belt quantity: 1
- Belt teeth: 281
- Belt width: 29 mm (1.142 in)
- Tensioner quantity: 1
- Idler quantity: 4
Build and materials
- Belt material: HSN
- Tooth type: Modified Curvilinear (III)
- Tensioner type: Hydraulic
- Grade type: OE Exact
- Timing marks: yes
- Condition: new
- Warranty: the Gates warranty matches the original manufacturer's timing belt replacement intervals for parts, labor and other associated costs
- Country of origin: Japan
In the box
One timing belt, one hydraulic tensioner, three idlers, one idler sprocket, an installation tool, Loctite threadlocker and an instruction sheet. Bolts, springs and a water pump are not included; plan on new bolts, since the old ones may not be reusable.
Installation notes
- Detailed installation instructions come with the kit (instruction sheet 0098-1668).
- Technical Service Bulletins for troublesome applications are included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Gates TCK328N fit the 2005-2009 Subaru Outback H4 2.5L?
Yes. Gates TCK328N is listed for the 2005-2009 Subaru Outback H4 2.5L, which takes one kit. For any other car, look up your year and engine in the "Vehicles it fits" section.
Does this Gates timing belt kit come with an installation tool?
Yes. Gates TCK328N includes an installation tool, Loctite threadlocker and an instruction sheet numbered 0098-1668.
Is this a Gates timing belt and water pump kit?
No. This kit has no water pump; it holds one belt, one hydraulic tensioner, three idlers and an idler sprocket. A water pump is a separate part.
How wide is the belt in this kit, and how many teeth does it have?
The belt is 29 mm (1.142 in) wide with 281 teeth and a Modified Curvilinear (III) tooth type.
What can cracked or frayed teeth on a timing belt mean?
Cracked or frayed teeth, or oil on the belt, can mean the belt is worn and the kit is due. Seeing the belt takes the timing cover off, so a shop can inspect it.
