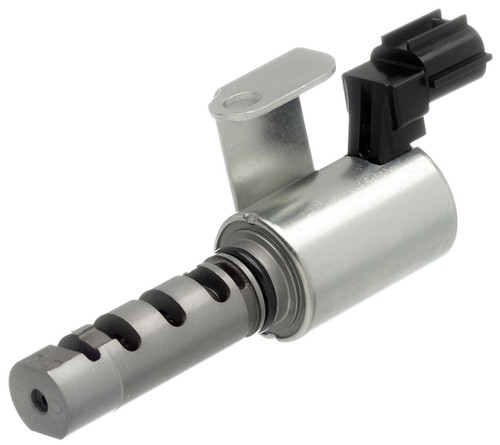

Gates VVS164 VVT solenoid for the 2006-2010 Subaru Forester H4 2.5L and other vehicles controls oil flow to the engine's variable valve timing system. This intake solenoid, also called a variable valve timing solenoid, is designed to OE specifications in fit, form and performance.
- Continuously controls oil flow for precise valve timing
- Electromagnetic activation on a 12 V circuit
- Steel housing, 123 mm long and 28.5 mm wide
- Seal included with the solenoid
- One female connector with two male blade terminals
Quick facts
- Part: Gates VVS164 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2006-2010 Subaru Forester H4 2.5L and other vehicles
- Position: Intake
- Material: Steel (housing)
- Condition: New
A rough idle or a check engine light can go with a failing VVT solenoid. These signs alone do not prove the solenoid is the problem, since dirty engine oil is another common cause. If the solenoid is the cause, this one replaces it. This listing is one solenoid, and the 2007-2009 Subaru Outback H4 2.5L takes two.
Fits
It is a direct-fit replacement, listed for a wide range of Subaru models, such as the 2007-2009 Subaru Outback H4 2.5L, and as a Subaru Impreza VVT solenoid for the 2006-2010 model with the H4 2.5L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 2
- Overall height: 28.5 mm (1.122 in)
- Housing length: 123 mm (4.843 in)
- Housing width: 28.5 mm (1.122 in)
- Shaft diameter: 18 mm (0.709 in)
- Voltage: 12 V
Build and materials
- Housing material: Steel
- Activation type: Electromagnetic
- Connector: 1 female
- Terminals: 2 male blade
- Seal: included
- Condition: New
- Country of origin: China
In the box
One solenoid with its seal. Mounting hardware is not included, so plan on new mounting hardware, since the old pieces may not be reusable.
Interchange: 7V-9016 · 917-247
2T1052 · VV1067 · VTS1045 · VVT167 · 10921AA080 · TS1052
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
2T1052, VV1067, 7V-9016, 917-247, VVS164, VTS1045, VVT167, 10921AA080, TS1052
Frequently Asked Questions
Is this the Subaru Outback VVT solenoid for a 2007-2009 model with the H4 2.5L engine?
Yes. Gates VVS164 is listed for the 2007-2009 Subaru Outback H4 2.5L, which takes two. Open the "Vehicles it fits" section to check other Subaru models and engines.
Does this work as a Subaru Forester VVT solenoid on the 2006-2010 model with the H4 2.5L engine?
Yes. Gates VVS164 is listed for the 2006-2010 Subaru Forester H4 2.5L, which takes two.
Does the Gates VVS164 VVT solenoid come with a seal or mounting bolts?
The solenoid comes with its seal. Mounting hardware is not included.
What voltage and connector does this intake VVT solenoid use?
This intake solenoid is a 12-volt electromagnetic unit with one female connector and two male blade terminals.
Is Gates VVS164 the same part as 10921AA080?
Yes. 10921AA080 is on the interchange list for Gates VVS164, so this solenoid replaces that number.
