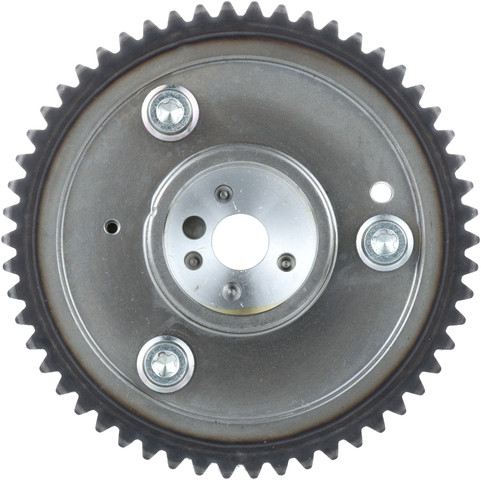

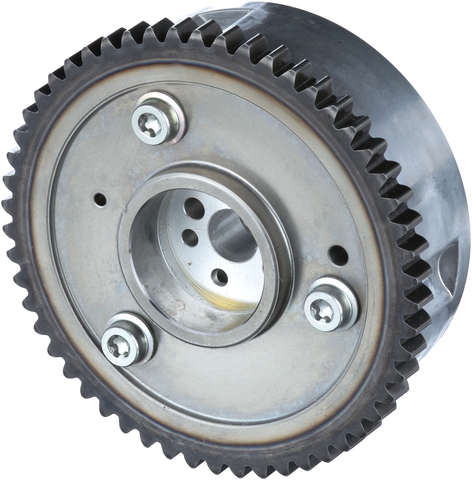

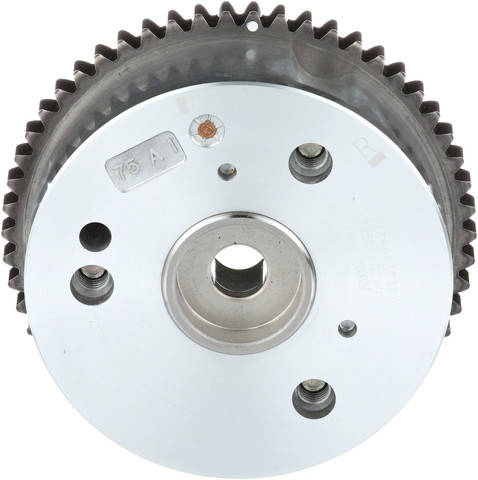

Gates VCP848 VVT sprocket for the 2009-2012 Hyundai Genesis V8 4.6L and other vehicles rotates the sprocket position to advance or retard valve timing. Also called an engine variable valve timing VVT sprocket, it is commonly known as a cam phaser or cam actuator.
- Tooth profiles made for quiet operation, with 54 teeth
- Precisely rotates the sprocket position to advance or retard valve timing
- Steel construction with a single-row timing chain drive
- Tested to help restore engine performance and fuel economy and to reduce emissions
Quick facts
- Part: Gates VCP848 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 2009-2012 Hyundai Genesis V8 4.6L and other vehicles
- Position: Intake
- Material: Steel
- Condition: New
A worn VVT sprocket can bring a rough idle, a rattle on startup or a timing-related check engine light. Before buying, check the oil level and condition with the engine off and cool, since low or dirty oil can also affect variable valve timing; a shop can read the codes.
Fits
Built to OE specifications in fit, form and performance, it is a direct replacement for the 2009-2012 Hyundai Genesis V8 4.6L, the 2011 Hyundai Equus V8 4.6L and the 2009 Kia Borrego V8 4.6L. This listing is one sprocket, and the 2009-2012 Hyundai Genesis V8 4.6L takes two.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 2
- Outside diameter: 4.21 in
- Height: 1.65 in
- Tooth quantity: 54
- Tooth thickness: 0.328 in
- Mounting hole quantity: 1
Build and materials
- Type: VVT sprocket
- Material: Steel
- Drive type: Timing chain, single row
- Grade type: OE Exact
- Condition: New
- Country of origin: China
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: 243503F300
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Gates VCP848 VVT sprocket fit the 2011 Hyundai Equus V8 4.6L?
Yes. Gates VCP848 is an intake-position VVT sprocket for the 2011 Hyundai Equus V8 4.6L, which takes two.
Does this VVT sprocket come with mounting bolts?
No. Gates VCP848 comes as one sprocket without mounting hardware, so plan on new bolts, since the old ones may not be reusable.
How many teeth does the Gates VCP848 sprocket have?
This steel sprocket has 54 teeth, a 4.21 in outside diameter and 0.328 in tooth thickness. It works with a single-row timing chain.
Can a worn intake VVT sprocket cause a rough idle?
It can, but a rough idle has other possible causes. A startup rattle or a timing-related check engine light can also go with a worn sprocket, and a shop can read the codes.
Does number 243503F300 cross to the Gates VCP848?
Yes. 243503F300 is listed as an interchange number for the Gates VCP848 VVT sprocket.
