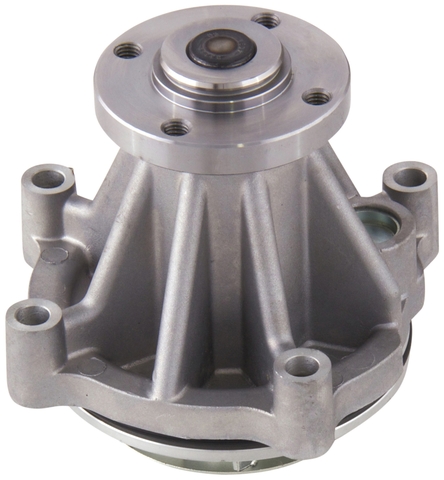

Gates 42107 water pump for the 2005-2009 Ford Mustang V8 4.6L circulates coolant through the engine to carry heat away. Also called an engine water pump, it is driven by the accessory belt rather than the timing belt.
- 100 percent functional test of the seals and bearings
- 100 percent leakage test of the casting and of the fully assembled water pump
- Cast aluminum housing for the pump body

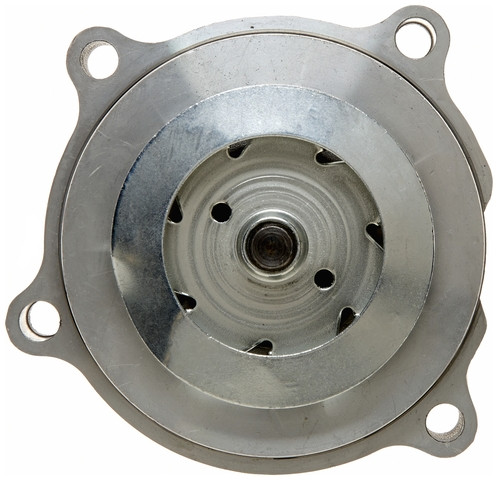

- Stamped steel impeller with standard rotation
- Two outlets on the pump
Quick facts
- Part: Gates 42107 water pump
- Also called: engine water pump
- Fits: 2005-2009 Ford Mustang V8 4.6L
- Material: cast aluminum housing, stamped steel impeller
- Condition: New
A coolant leak near the pump, a whining or grinding noise from the bearing, or an engine that runs hot can mean the water pump is wearing out. Before you replace it, rule out a loose hose clamp, a stuck thermostat and a low coolant level (checked only with the engine cool), because those can also leave coolant on the ground or send the temperature up.
Fits
This water pump fits and performs to OE specifications on the 2005-2009 Ford Mustang V8 4.6L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlets: 2
- Drive type: accessory belt (not timing belt driven)
- Impeller rotation: standard
Build and materials
- Housing material: cast aluminum
- Impeller material: stamped steel
- Condition: new
- Warranty: Gates limited lifetime warranty
- Country of origin: China
In the box
One water pump and one seal. This listing holds one water pump, and the 2005-2009 Ford Mustang V8 4.6L takes one. A pulley, a fan clutch, a back housing and a thermostat with housing are not included.
Interchange: 5R3Z 8501 A · 125-5950 · PW 470
BVC841 · 942107
This part cross-references / interchanges with the following part numbers:
5R3Z 8501 A, 125-5950, PW 470, 42107, BVC841, 942107
Frequently Asked Questions
Is Gates 42107 a water pump for the 2005-2009 Ford Mustang V8 4.6L?
Yes. Gates 42107 water pump fits the 2005-2009 Ford Mustang V8 4.6L, which takes one pump.
Does the Gates 42107 water pump come with a pulley or thermostat?
No. Gates 42107 comes as one water pump with its seal. A pulley, fan clutch, back housing and thermostat with housing are not included.
What are the housing and impeller made of on this water pump?
The housing is cast aluminum and the impeller is stamped steel. The pump has two outlets.
Is this water pump driven by the timing belt or the accessory belt?
This water pump is accessory belt driven, not timing belt driven, and its impeller has standard rotation.
What tests does the Gates 42107 water pump go through?
Gates 42107 gets a 100 percent functional test of its seals and bearings. Both the casting and the assembled pump also get a 100 percent leakage test.
