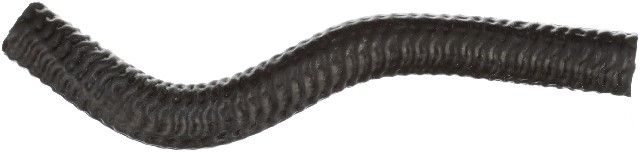

Heater Hose for 2015-2018 Hyundai Sonata & More - Gates 12293

The Gates 12293 heater hose for the 2015-2018 Hyundai Sonata and other vehicles is a factory-molded, OEM-style hose that carries coolant into the heater. It is shaped to fit today's smaller, tighter-fitting engine compartments.

• Part of the Gates Small I.D. Molded Coolant Hose line, made for coolant, water and air applications.
• This Gates molded heater hose has all the quality features of Gates molded coolant hose and is similar to OEM specifications.
• Built to resist electrochemical degradation, the leading cause of hose failure.
• EPDM tube, synthetic fiber knit reinforcement and an EPDM cover.
• Meets SAE 20R3 Type EC Class D-1 and D-2 specifications.
• Temperature range: -40 Deg. F to 275 Deg. F (-40 Deg. C to 135 Deg. C).

Cracks, a swollen or soft spot, or coolant at either end can mean this heater hose is worn, though a loose clamp or a leaking heater core can leave the same wetness, so trace the leak before replacing it.

It's listed for a wide range of Hyundai and Kia models, including the 2016-2020 Kia Sorento and the 2016-2018 Kia Optima, at the heater inlet and throttle body inlet. If your Hyundai or Kia isn't named on this page, look it up on the Buyer's Guide tab before you order.

Specifications

• Position: heater inlet, throttle body inlet
• Construction: molded
• Tube: EPDM
• Reinforcement: synthetic fiber knit
• Cover: EPDM
• Standard: SAE 20R3 Type EC Class D-1 and D-2
• Temperature range: -40 Deg. F to 275 Deg. F (-40 Deg. C to 135 Deg. C)
• Use: coolant, water and air applications

Installation notes

• Replace the hose clamps each time a new heater hose is installed.
• Do not use this hose for fuel or oil transfer applications.

Interchange: 14953S · F10020 · 254682GGA0 · 13293
