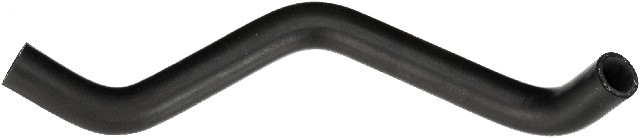

Lower Heater Hose for 2012-2020 Chevrolet Sonic - Gates 12322

Gates 12322 lower heater hose for the 2012-2020 Chevrolet Sonic carries engine coolant between the engine and the heater core on the lower heater line.

• Gates molded heater hose in a small I.D., factory-molded OEM style to fit today's smaller, tighter engine compartments.
• Works for coolant, water and air applications, and is also approved for marine applications.
• Carries the quality features of Gates molded coolant hose and is built similar to OEM specifications.
• Engineered to resist electrochemical degradation, the leading cause of hose failure.
• EPDM tube, synthetic fiber knit reinforcement and EPDM cover.
• Meets SAE 20R3 Type EC Class D-1 and D-2 specifications.

A heater hose that has cracked or swollen can let coolant seep out, and a coolant level that keeps dropping, checked with the engine cool, can be another sign. Before you replace the hose, rule out a loose clamp or a leak at a nearby fitting or the heater core, since a leak there can look like a failing hose.

This Gates heater hose is a direct-fit replacement for the lower heater position on the 2012-2020 Chevrolet Sonic.

Specifications

• Position: heater, lower
• Construction: factory-molded, small I.D.
• Tube and cover: EPDM
• Reinforcement: synthetic fiber knit
• Specification: SAE 20R3 Type EC Class D-1 and D-2
• Temperature range: -40 Deg. F to 275 Deg. F (-40 Deg. C -135 Deg. C)
• Uses: coolant, water and air; approved for marine applications

Installation notes

• Fit new hose clamps each time a new coolant hose is installed.
• Do not use this hose for fuel or oil transfer.

Interchange: 16757M · F10025 · 96958209 · 13322
