Heater Hose for 2014-2018 Toyota Highlander - Gates 51549

$208.99

Part number: 51549

UPC: 770075783633

Condition: New

Weight: 5.87 LBS

Item Package Quantity: 1

$208.99

Current Stock: 11

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

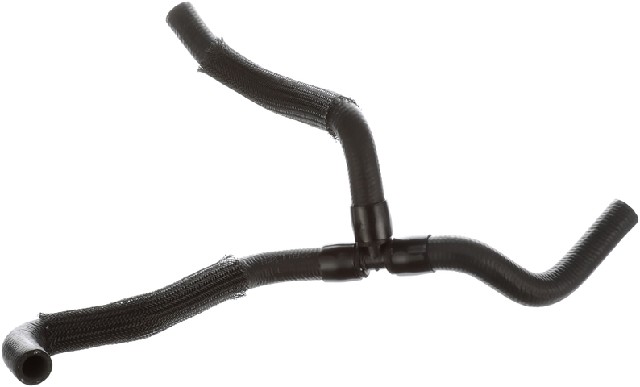

Gates HVAC Heater Hose P/N:51549

$208.99

Description

Gates 51549 heater hose for the 2014-2018 Toyota Highlander V6 3.5L carries engine coolant to the heater. This Gates molded heater hose is manufactured to fit a specific application.

Modular molded hose with one integrated branch and no quick-connect fittings
Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation, the leading cause of hose failure
EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
Meets SAE 20R3 EC Class D1 for hoses under 25 mm (1 in.) ID

Quick facts

Part: Gates 51549 heater hose
Also called: HVAC heater hose
Fits: 2014-2018 Toyota Highlander V6 3.5L
Position: Heater inlet
Material: EPDM and plastic
Condition: New

Coolant dripping at the hose ends or a soft, swollen hose can mean this heater hose is worn, though a loose clamp or a leaking heater core can be behind the same signs.

Fits

This hose is a direct-fit replacement for the 2014-2018 Toyota Highlander V6 3.5L.

Specifications

Fit and size

Position: heater inlet
Quantity per vehicle: 1
Centerline length: 22 in (559 mm)
End 1 inside diameter: 0.6 in (15 mm)
End 2 inside diameter: 0.6 in (15 mm)
End 3 inside diameter: 0.6 in
Branch connectors: 1

Build and materials

Construction: molded, modular
Material: EPDM and plastic
Contains spring: no
Temperature range: -40°F to +257°F (-40°C to +125°C)
Condition: new
Country of origin: United States

In the box

One heater hose with its integrated branch. The 2014-2018 Toyota Highlander V6 3.5L takes one.

Installation notes

Replace the clamps each time a new coolant hose is installed.
Not for fuel or oil transfer applications.

Interchange: 24854L · F11228 · 872090E160

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

24854L, F11228, 51549, 872090E160

Buyer's Q&A

Frequently Asked Questions

Does the Gates 51549 heater hose fit the 2014-2018 Toyota Highlander V6 3.5L?

Yes. Gates 51549 is made for the 2014-2018 Toyota Highlander V6 3.5L and fills the heater inlet position, one hose per vehicle.

Is this Gates HVAC heater hose made of EPDM?

Yes. This heater hose has an EPDM tube and cover with a synthetic fiber knit reinforcement, and the listed material is EPDM and plastic.

What temperature range can the Gates 51549 handle?

Gates 51549 is rated from -40°F to +257°F (-40°C to +125°C). It meets SAE 20R3 EC Class D1 for hoses under 25 mm (1 in.) ID.

What can a worn heater inlet hose look like?

Visible cracks, a flattened or collapsed section, or damp coolant staining at the clamps can mean it is worn. Inspect it only with the engine off and cool.

Should I replace the clamps when installing Gates 51549?

Yes. Replace the clamps each time a new coolant hose is installed. This hose is not for fuel or oil transfer applications.
