GMB 530-2300 fuel pump module for the 1998-2000 Chevrolet Tahoe V8 5.7L and other vehicles moves gasoline from the tank to the engine. Also called a fuel pump assembly, it includes the fuel sending unit.
- Every unit is factory tested for leakage and dimensional precision
- Every unit is pressure and flow-rate tested in-house
- Durability tested during development for longer life
- Designed to reduce noise
- Rated for 115 U.S. gallons per hour maximum flow and 44 psi maximum pressure
Quick facts
- Part: GMB 530-2300 fuel pump module
- Also called: fuel pump assembly
- Fits: 1998-2000 Chevrolet Tahoe V8 5.7L and other vehicles
- Condition: New
Hard starting, stalling or a loss of power can mean the fuel pump module is worn, though a clogged fuel filter or a faulty fuel pressure regulator can be behind those signs too, so find the cause before you replace the module.
Fits
Built to OE-level tolerances, this module is a direct-fit replacement for the 1998-2000 Chevrolet Tahoe V8 5.7L, the 1998-2000 GMC Yukon V8 5.7L and the 1999-2000 Cadillac Escalade V8 5.7L. This listing is one module, and the 1998-2000 Chevrolet Tahoe V8 5.7L takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Fuel type: Gasoline
- Maximum pressure: 44 psi
- Maximum flow rating: 115 U.S. gallons per hour
- Average current draw: 9 amp
Build and materials
- Fuel sending unit: included
- Condition: New
- Country of origin: China
In the box

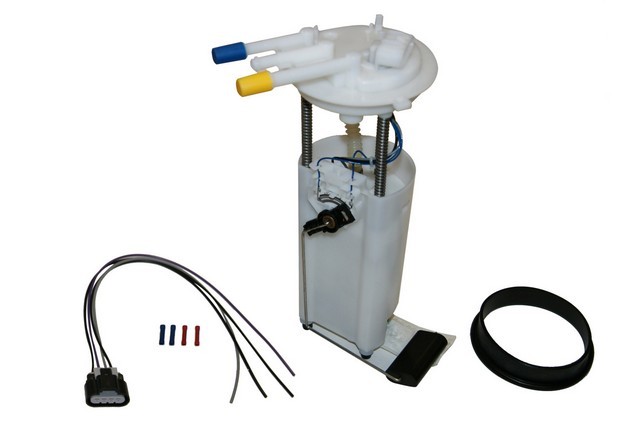

One fuel pump module with its fuel sending unit, one tank seal, four wire connectors, one wire harness and one installation guide.
Installation notes
- All hardware required for installation is included.
- The installation guide in the box covers the steps.
Frequently Asked Questions
Is the GMB 530-2300 fuel pump module the right one for a 1998-2000 Chevrolet Tahoe V8 5.7L?
Yes. GMB 530-2300 is listed for the 1998-2000 Chevrolet Tahoe V8 5.7L and for the 1998-2000 GMC Yukon V8 5.7L, with one module per vehicle.
Does this fuel pump module come with the fuel sending unit and wiring?
Yes. GMB 530-2300 includes the fuel sending unit, one tank seal, four wire connectors, one wire harness and one installation guide.
What flow rate and pressure does this 12-volt fuel pump module have?
This gasoline fuel pump module is rated for a maximum flow of 115 U.S. gallons per hour and a maximum pressure of 44 psi. It draws an average of 9 amp.
What are the signs of a fuel pump module that is wearing out?
Hard starting, stalling and a loss of power under load can all mean the pump is weak. A shop can test fuel pressure to confirm, since that test involves the fuel line.
Is every GMB 530-2300 module tested before use?
Yes. Each GMB 530-2300 is tested for leakage, dimensional precision, pressure and flow rate, and it is designed to reduce noise.
