KYB 341434 front right suspension strut assembly for the 1996-2001 Acura RL manages tire contact and body movement. This KYB strut assembly is calibrated to restore the car's original, designed performance.
- KYB Excel-G line: nitrogen gas-charged, twin-tube design
- Triple lip fluid seal to reduce the chance of oil and gas leaking out
- Vehicle-specific, hand-assembled in-house damping valves for tire contact, steering response and body movement
- Strut body and brackets built thick to limit flex and hold alignment
- Internal rebound bumper
Quick facts

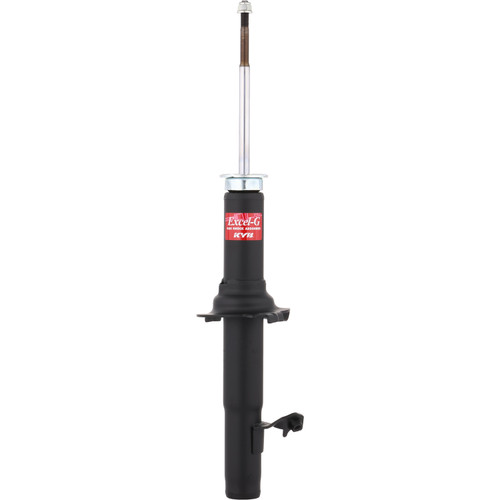

- Part: KYB 341434 suspension strut assembly
- Fits: 1996-2001 Acura RL
- Position: Front right
- Condition: New
A worn strut can show up as a bouncy ride, extra body movement after bumps or a clunk over rough pavement. Those symptoms can also start in the mounts, tires or other suspension parts, so with the car parked and the engine off, look over the strut body for oil before you decide on a replacement.
Fits
This is a direct-fit replacement for the 1996-2001 Acura RL, which takes one on the front right. The listing is one strut; the front left is a separate part, and the two are normally replaced together on the front axle.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1
- Upper mount type: 10x1.25
- Extended length: 19.8 in
- Compressed length: 15.35 in
- Stroke length: 4.45 in
Build and materials
- Type: nitrogen gas-charged, twin-tube
- Internal rebound bumper: yes
- Internal rebound spring: no
- Condition: new
- Country of origin: Japan
In the box
One suspension strut assembly. A dust cover and a bump stop are not included.
Interchange: 51605SZ3014 · 51605SZ3024 · 51605SZ3A01 · 72156
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
51605SZ3014, 51605SZ3024, 51605SZ3A01, 72156
Frequently Asked Questions
Is this KYB front strut assembly the right or left side for the 1996-2001 Acura RL?
It is the right side. KYB 341434 is the front right strut for the 1996-2001 Acura RL; the front left strut is a separate part.
How long is this KYB suspension strut, and how far does it travel?
The extended length is 19.8 in, the compressed length is 15.35 in and the stroke is 4.45 in. The upper mount type is 10x1.25.
Is the KYB Excel-G strut assembly gas-charged or oil-filled?
The KYB 341434 is a nitrogen gas-charged, twin-tube design. A triple lip fluid seal reduces the chance of oil and gas leaking out.
Does the KYB suspension strut assembly come with a dust cover or bump stop?
No. KYB 341434 comes without a dust cover or a bump stop; the KYB SM5289 strut mount and SB108 strut boot it recommends are separate parts.
Can the KYB 341434 replace the strut with number 51605SZ3014?
Yes. 51605SZ3014 is one of the numbers this KYB 341434 front right strut replaces.
