MAHLE Engine Piston Set P/N:224-3891-0.50MM (Pack of 8)
$1,156.99
(You save)
Rebuild your bottom end with genuine MAHLE quality — the MAHLE Engine Piston Set 224-3891-0.50MM supplies oversize replacement pistons for the 2008-2010 Ford F-250, F-350, F-450, and F-550 Super Duty with the V8-6.4L engine. Each piston is supplied at 0.50 mm oversize, intended for engines whose cylinder bores have been machined 0.50 mm over during a rebuild.
Ready to install: pistons arrive with the piston rings mounted and the pin and clips included for the engine builder's convenience.
Compensated ring grooves: designed to assure proper ring loading and oil control.
Expansion-controlled design: intended to hold small fitting clearances to help reduce engine noise, wear, and emissions and improve oil control.

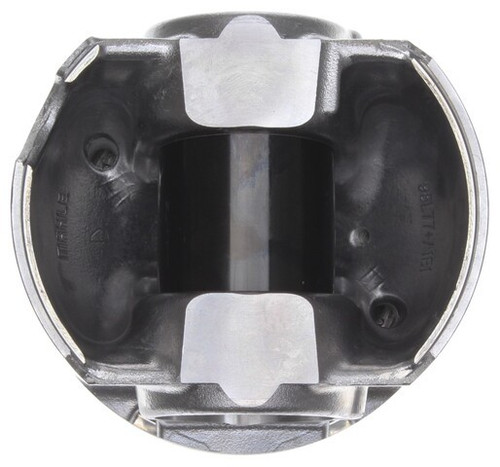

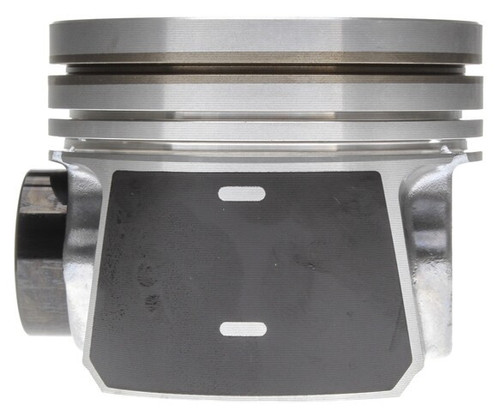

Piston specs: aluminum construction with a bowl-type piston head, a 38.496 mm piston pin outside diameter, a 2.00 mm second compression ring, and a 3.00 mm oil ring.
MAHLE pistons are built to OE quality, and MAHLE is one of the world's largest OE piston manufacturers. The listed V8-6.4L applications use eight pistons; quantity per application is 8 and the minimum order quantity is 8. Country of origin: China.
Interchange: Manufacturer part number 224-3891-0.50MM.
This part cross-references / interchanges with the following part numbers:
8C3Z 6108-CB, 1833994C1
Frequently Asked Questions
What vehicles does this piston set fit?
It fits the 2008-2010 Ford F-250, F-350, F-450, and F-550 Super Duty with the V8-6.4L engine. Check the Buyer's Guide tab to confirm your vehicle.
Is this an oversize piston set?
Yes. It is supplied at 0.50 mm oversize, intended for engines whose cylinder bores have been machined 0.50 mm over during a rebuild.
What comes with the pistons?
Each piston arrives with the piston rings mounted and the piston pin and clips included, so the set is ready for the engine builder to install.
How many pistons do I need?
The listed V8-6.4L applications use eight pistons. Quantity per application is 8 and the minimum order quantity is 8.
What are the piston specifications?
Aluminum construction with a bowl-type piston head, a 38.496 mm piston pin outside diameter, a 2.00 mm second compression ring, and a 3.00 mm oil ring.
