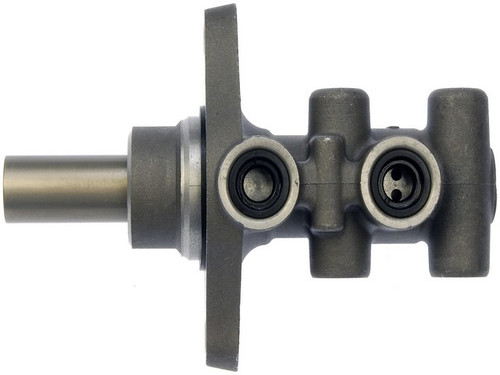

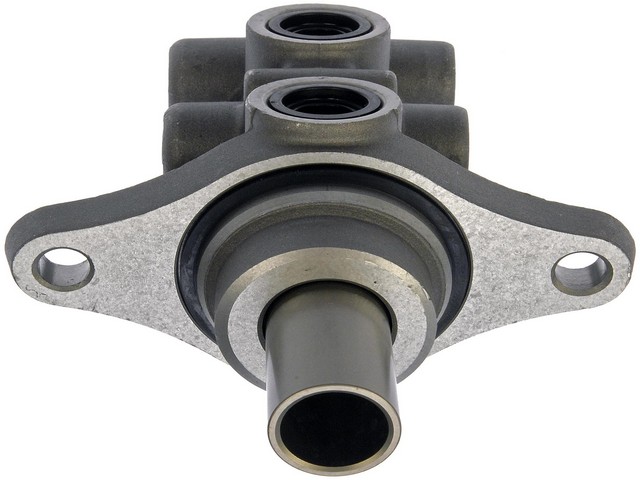

Dorman M630567 brake master cylinder for the 2007-2011 Dodge Caliber turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is built entirely from new materials.
- Part of the Dorman First Stop line
- Aluminum cylinder housing
- EPDM rubber components resist glycol-based brake fluid
- Built to SAE International standards
Quick facts
- Part: Dorman M630567 brake master cylinder
- Fits: 2007-2011 Dodge Caliber
- Material: Aluminum
- Condition: New
A brake pedal that sinks or feels soft, or fluid around the cylinder, can mean the master cylinder is worn, though a leaking brake hose or a sticking caliper can be behind them as well, so find the cause before you replace it.
Fits
This master cylinder is a direct-fit replacement for the 2007-2011 Dodge Caliber, which takes one per vehicle.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.813 in
- Number of outlets: 4
- Rearward outlet size: (2)M10x1.0
- Secondary outlet thread diameter: (2)M12x1.0
Build and materials
- Material: Aluminum
- Rubber components: EPDM
- Condition: New
- Country of origin: China
In the box
One master cylinder. The reservoir, mounting hardware and sensor are not included, so plan on new mounting hardware, as the old pieces may not be reusable.
Interchange: 100-2431 · 13-3327 · 10-3327 · 130.63069 · 355-40034
5175701AA · NM4133 · NM4141 · MC391071 · F144414 · F900059 · MC144414 · MWMMC900059
This part cross-references / interchanges with the following part numbers:
100-2431, 13-3327, 10-3327, 130.63069, 5175701AA, 355-40034, NM4133, NM4141, MC391071, F144414, F900059, MC144414, MWMMC900059
Frequently Asked Questions
Is the Dorman M630567 the right brake master cylinder for the 2007-2011 Dodge Caliber?
Yes. Dorman M630567 is listed for the 2007-2011 Dodge Caliber, and that vehicle takes one master cylinder.
Does this Dorman master cylinder come with a reservoir?
No. Dorman M630567 is the master cylinder alone. The reservoir, mounting hardware and sensor are not included.
Are the rubber parts in this master cylinder resistant to glycol-based brake fluid?
Yes. The rubber components are made of EPDM compound that resists glycol-based brake fluid. The housing is aluminum.
What are the outlet thread sizes on the Dorman M630567?
It has four outlets: two rearward outlets at M10x1.0 and two secondary outlets at M12x1.0. The bore diameter is 0.813 in.
Is 5175701AA the same master cylinder as the Dorman M630567?
Yes. 5175701AA is a listed interchange number for Dorman M630567, along with NM4133 and F144414.
