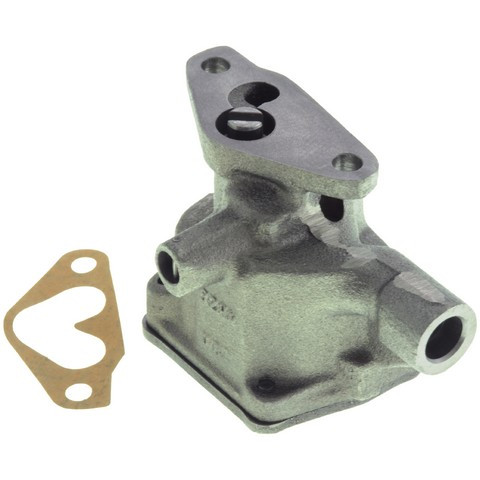

Melling Engine Oil Pump M-62HV
Melling Engine Oil Pump M-62HV - view 2

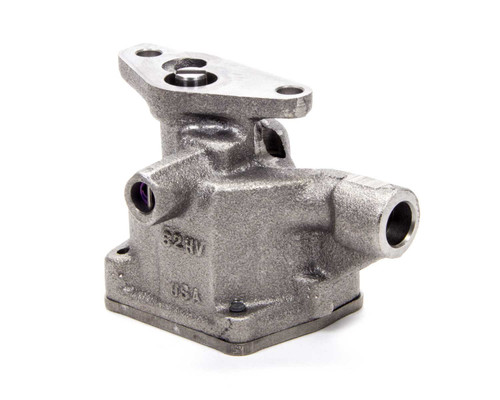

Melling Engine Oil Pump M-62HV - view 3
Melling Engine Oil Pump M-62HV
Melling Engine Oil Pump M-62HV - view 2
Melling Engine Oil Pump M-62HV - view 3

Oil Pump for 1973-1977 Chevrolet Malibu & More - Melling M-62HV

Be the first to review this product
$160.99
MPN: M-62HV
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Melling Engine Oil Pump P/N:M-62HV
Melling Engine Oil Pump P/N:M-62HV
$160.99

Melling M-62HV oil pump for the 1973-1977 Chevrolet Malibu 6-cylinder 4.1L and other vehicles helps raise oil pressure at idle by moving more oil through the engine. This Melling oil pump, also called an engine oil pump, is a gear-type, standard-pressure replacement that supplies extra oil for high performance use or low oil pressure.

  • Melling high volume oil pump design with 20% additional volume over stock
  • Spur gears machined to close tolerances for correct engine pressure and efficient pump operation
  • Cast iron housing and cover with steel gears
  • End plates precision ground for wear resistance
  • Individually tested for pressure and flow, with a rust preventative finish

Quick facts

  • Part: Melling M-62HV oil pump
  • Also called: engine oil pump
  • Fits: the 1973-1977 Chevrolet Malibu 6-cylinder 4.1L and other vehicles
  • Material: cast iron housing and cover, steel gears
  • Condition: New

Low oil pressure or an oil pressure warning light can mean the pump is worn, although a clogged pickup screen or worn engine bearings might also be the reason for low pressure. If the pump is the cause, this one replaces it.

Fits

This pump is listed for a wide range of Chevrolet, Buick, GMC, Oldsmobile, Pontiac and Studebaker models. Among them are the 1973-1977 Chevrolet Malibu 6-cylinder 4.1L, the 1963-1965 Chevrolet Impala 6-cylinder 3.8L and the 1965-1974 Impala 6-cylinder 4.1L, and the 1963-1966 Chevrolet Suburban 6-cylinder 3.8L or 4.8L and the 1966 Suburban 6-cylinder 4.1L. Driving something else? Look up its year and engine on the Buyer's Guide tab.

Specifications

Fit and size

  • Quantity per vehicle: 1
  • Pickup tube diameter: 16.0 mm (0.61 in)
  • Inlet size: 16.00 mm (0.630 in)
  • Mounting hole diameter: 10.0 mm (0.375 in)
  • Mounting holes: 2
  • Height: 89.0 mm (3.5 in)
  • Width: 126.0 mm (4.96 in)

Build and materials

  • Type: gear pump, spur gear
  • Pressure: standard pressure, high volume (20% additional volume over stock)
  • Housing and cover material: cast iron
  • Gear material: steel
  • Finish: rust preventative
  • Condition: New
  • Country of origin: United States

In the box

One oil pump with its gears, pump cover and gasket. This listing is one pump, and each vehicle takes one. The pickup screen, drive shaft, timing cover, bolts, bushing, O-ring and washers are not included, so plan on new bolts.

Interchange: A-62HV · 41-57U · B-62HV · DM-62HV · EM-62HV · 601-1110 · MM-62-HV · OP-62-HV · 224-4157 · WG-515X
OP182 · OP182HV · HM62HV · P62HV · 50085

This part cross-references / interchanges with the following part numbers:

A-62HV, 41-57U, B-62HV, DM-62HV, EM-62HV, OP182, OP182HV, HM62HV, 601-1110, MM-62-HV, P62HV, OP-62-HV, 224-4157, 50085, WG-515X

Frequently Asked Questions

Is this a Chevy Suburban oil pump for the 1963-1966 Suburban 6-cylinder 3.8L or 4.8L?

Yes. Melling M-62HV is listed for the 1963-1966 Chevrolet Suburban 6-cylinder 3.8L or 4.8L, and for the 1966 Suburban 6-cylinder 4.1L.

Is this Chevy Malibu oil pump right for the 1973-1977 Malibu 6-cylinder 4.1L?

Yes. This pump is listed for the 1973-1977 Chevrolet Malibu with the 6-cylinder 4.1L, and that Malibu takes one pump.

Is this a Melling high pressure oil pump?

No. The Melling M-62HV is a high volume, standard pressure gear pump with 20% additional volume over stock. It has no adjustable bypass pressure.

Does this oil pump come with a pickup screen or bolts?

No. This oil pump comes with its gears, pump cover and gasket. The pickup screen, drive shaft, bolts, bushing and O-ring are not included.

What size is the pickup tube on the Melling M-62HV?

The pickup tube diameter is 16.0 mm (0.61 in), and the inlet size is 16.00 mm (0.630 in). The two mounting holes are 10.0 mm (0.375 in).
