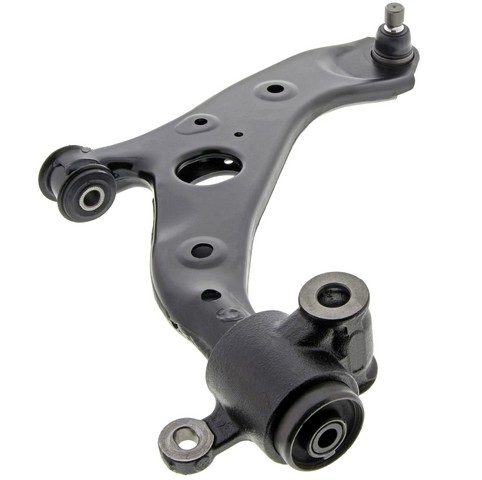

Mevotech CMS761237 front right lower control arm with ball joint for the 2017-2025 Mazda CX-5 connects the wheel to the chassis and lets it move with the road. This control arm and ball joint assembly replaces the arm and its ball joint in one piece.
- Mevotech Supreme control arm engineered in-house with application-specific upgrades
- Protective surface treatment resists rust build-up
- Steel control arm with rubber bushings and a rubber dust boot
- Pre-greased press-in ball joint with a grooved stud
- Extensive in-house and third-party durability testing
Quick facts
- Part: Mevotech CMS761237 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2017-2025 Mazda CX-5
- Position: Front right lower
- Material: Steel
- Condition: New
A clunk over bumps, uneven tire wear or loose steering can mean this arm, its bushings or its ball joint is worn, though a worn tie rod end or sway bar link can be behind the same signs. If the arm is the cause, this assembly replaces it.
Fits
It is a 2017-2025 Mazda CX-5 control arm. The car takes one lower arm on each side of the front axle; this listing is the right side, the left is ordered separately, and both sides are normally replaced together.
Specifications
Fit and size
- Position: front right lower
- Quantity per application: 1
- Ball joint mounting type: press in
- Ball joint stud type: grooved
- Control arm maximum width: 13.51 in
- Control arm maximum length: 14.66 in
Build and materials
- Type: control arm with ball joint, not adjustable
- Control arm material: steel
- Bushings: included, rubber
- Dust boot: included, rubber
- Ball joint: included, pre-greased
- Condition: new
- Country of origin: Turkey
In the box
One control arm with its bushings, ball joint and dust boot.
Interchange: 520-052
19531423 · CB65254 · 5CB76223 · K0V834300 · KB7W34300D · KB7W34300F · KB7W34300G · KB7W34300H · 2609055
This part cross-references / interchanges with the following part numbers:
19531423, 520-052, CB65254, 5CB76223, K0V834300, KB7W34300D, KB7W34300F, KB7W34300G, KB7W34300H, CMS761237, 2609055
