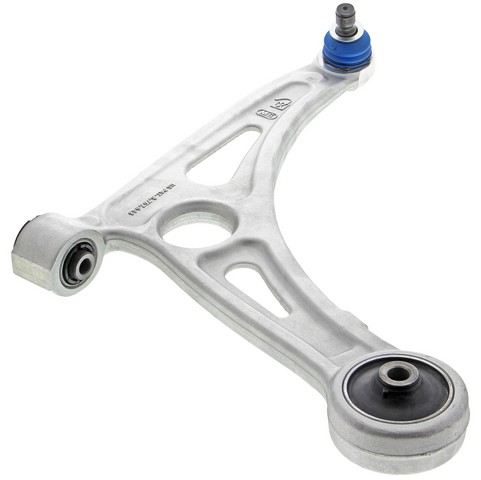

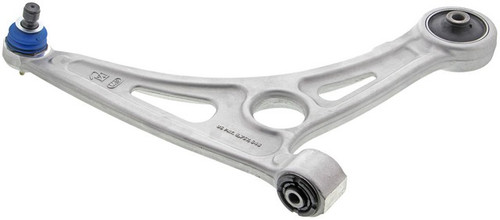

Mevotech Supreme CMS901246 front right lower control arm with ball joint for the 2016-2019 Hyundai Sonata and other vehicles links the wheel to the suspension through an integrated ball joint. This Mevotech Supreme control arm, also called a control arm and ball joint assembly, is built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks.
- Mevotech Supreme line, engineered in-house with application-specific upgrades
- Patented sintered bearings for longer-lasting performance
- BiMetallic technology: a greaseable sintered bearing for unitized aluminum control arms under high heat and high load
- Additional surface treatment on the ball joint that prevents rust build-up
- Bushings with a solid cross section for increased stiffness and durability
- Application-specific ball stud system with a larger sphere
Quick facts
- Part: Mevotech Supreme CMS901246 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2016-2019 Hyundai Sonata and other vehicles
- Position: Front right lower
- Material: Aluminum
- Condition: New
A clunk over bumps, uneven tire wear or loose steering can mean the ball joint or bushings are worn, though a worn strut mount or tie rod end can be behind the same signs.
Fits
This listing is a control arm replacement for the 2016-2019 Hyundai Sonata and fits the 2017-2020 Kia Optima too; each takes one on the front right. It is one arm only: the front left is its own part, ordered separately, and the two sides are normally replaced together. The forged aluminum construction meets or exceeds OE specifications.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle: 1
- Maximum width: 17.7 in
- Maximum length: 14.75 in
Build and materials
- Control arm material: Aluminum
- Bushing material: Rubber
- Bearing material: Sintered metal
- Ball joint stud type: Grooved
- Greaseable and pre-greased
- Condition: New
- Country of origin: China
In the box

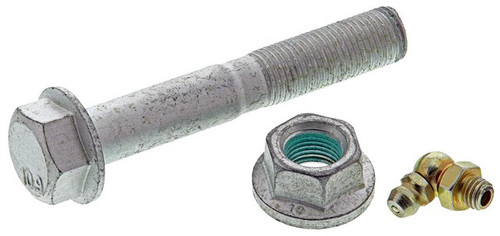

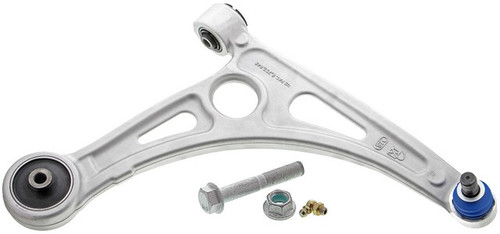

One control arm with ball joint and bushings, a 90 degree SAE grease fitting, and an application-specific pinch bolt and locking nut.
Installation notes
- The part comes pre-greased.
- The fasteners have pre-applied nylok thread adhesive.
- Labor Saver designs, tools and hardware make installation faster.
Interchange: 528-230
19425951 · TC4018 · CB63294 · 54501E6100 · RK623734 · 2608681 · 30031522 · X18CJ0941
This part cross-references / interchanges with the following part numbers:
19425951, TC4018, 528-230, CB63294, 54501E6100, RK623734, CMS901246, 2608681, 30031522, X18CJ0941
Frequently Asked Questions
Is this a lower control arm for the 2016-2019 Hyundai Sonata?
Yes. Mevotech Supreme CMS901246 is a front right lower control arm with ball joint for the 2016-2019 Hyundai Sonata. The front left side is a separate part.
Is this a control arm for the 2017-2020 Kia Optima?
Yes. Mevotech Supreme CMS901246 fits the 2017-2020 Kia Optima as the front right lower arm, and the car takes one on this side.
Does this control arm come with a grease fitting and a pinch bolt?
Yes. It includes a 90 degree SAE grease fitting plus an application-specific pinch bolt and locking nut. The bushings come with the arm.
What are the bearing and bushing materials on this control arm?
The bearing is sintered metal and the bushings are rubber. The arm itself is aluminum, and the part is pre-greased and greaseable.
Is there thread adhesive already on the bolts of this control arm?
Yes. The fasteners come with pre-applied nylok thread adhesive. The part also comes pre-greased.
