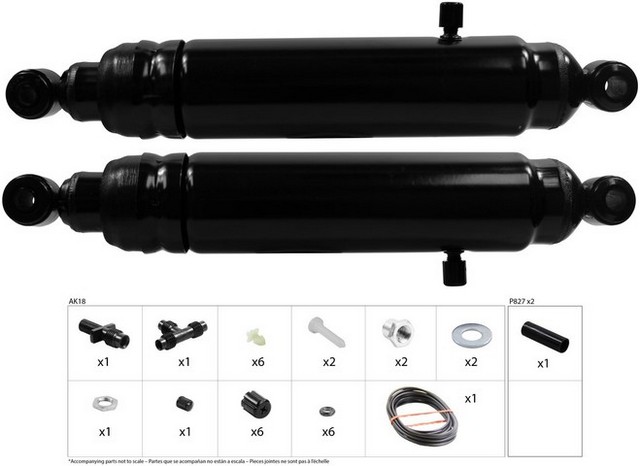

Monroe Shocks & Struts MA770 rear shock absorber for the 1983-2011 Ford Ranger and other vehicles uses an air chamber to hold ride height under load. It is made for hauling loads.
- Monroe Max-Air chamber inflates or deflates up to 150 PSI to keep level height with up to 1,200 lbs of added weight
- Air fitting resists leakage, ties into the vehicle's existing system where applicable, or inflates by hand with an air compressor
- Full-displaced valving on compression and extension cycles for a smooth ride
- Hardened, precision-ground piston rod and sintered iron piston for consistent performance and a longer service life
- Lubricated air sleeve reduces friction for smooth operation
- All-weather fluid with special modifiers to handle extreme temperatures and reduce friction
Quick facts
- Part: Monroe Shocks & Struts MA770 shock absorber
- Fits: 1983-2011 Ford Ranger and other vehicles
- Position: Rear
- Condition: New
A bouncy ride, fluid on the shock body or a rear end that bottoms out over bumps can mean the shock is worn, though worn tires or a worn rear spring can be behind the same signs, so find the cause before replacing it. The pack holds two shocks, which gives the 1983-2011 Ford Ranger a pair for the rear; fit both together.
Fits
It fits the 1983-2011 Ford Ranger, the 1994-2009 Mazda B4000 and the 1994-2008 Mazda B3000.
Specifications
Fit and size
- Position: Rear
- Pieces per pack: 2
- Compressed length: 15.875 in (403.2 mm)
- Extended length: 26.375 in (669.9 mm)
- Travel length: 10.5 in
- Upper mount: loop bushing, 5/8 bushing ID x 1.5/16 bushing OAL
- Lower mount: loop bushing and sleeve, 12 mm sleeve ID x 1.1/2 sleeve OAL
- Measuring points: center of loop at body end and rod end
Build and materials
- Type: air-adjustable shock absorber
- Air pressure: up to 150 PSI
- Added load: up to 1,200 lbs, limited by suspension, tires and transmission (see owner's manual)
- Piston: sintered iron
- Internal rebound bumper: yes
- Dust shield: rubber, included
- Boot: included
- Condition: New
- Country of origin: China
In the box
Two shock absorbers, each with its dust shield and boot.
Interchange: 8L5Z18125AJ · 8L5Z18125AK · AL5Z18125AK
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
8L5Z18125AJ, 8L5Z18125AK, AL5Z18125AK, MA770
Frequently Asked Questions
Are these shock absorbers for the 1983-2011 Ford Ranger front or rear?
They are rear shocks: Monroe Shocks & Struts MA770 is a rear air shock absorber for the 1983-2011 Ford Ranger.
What comes in the Monroe Max-Air MA770 pack?
The pack holds two air shock absorbers, each with its dust shield and boot.
How much air pressure and added weight can the Max-Air chamber handle?
The air chamber can be inflated or deflated up to 150 PSI to keep level height under up to 1,200 lbs of added weight. Capacity is limited by the suspension, tires and transmission.
How can I tell if a rear air shock is worn?
Fluid on the shock body, a bouncy ride or a rear end that bottoms out can be signs of wear. Look with the vehicle parked and the engine off; a shop can test the shock.
Can the Monroe MA770 be filled with an air compressor?
Yes. The air fitting on the Monroe Shocks & Struts MA770 inflates manually with an air compressor, or it ties into the factory system where applicable.
