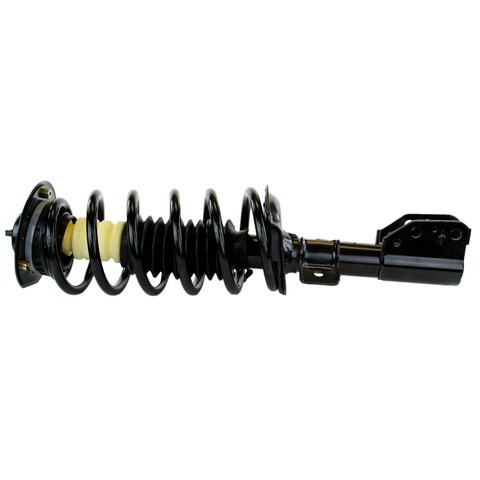

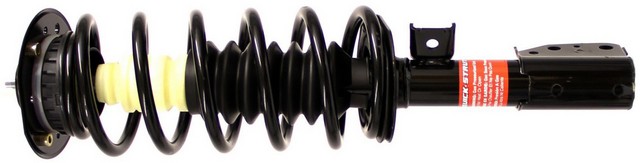

Monroe Shocks & Struts 172209 front right strut assembly for the 2005-2006 Chevrolet Equinox and other vehicles replaces the strut and spring as one unit. As a complete strut and coil spring assembly, it reduces body sway, vibration and road harshness before they reach the cabin.
- Fit checked and ride tested, with spring, mount and strut designs specific to the vehicle
- Quick-Strut assembly puts the strut, coil spring and upper mount in one fully assembled unit, with no spring compressor needed
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Steel construction with an upper tube and welded design for structural strength
- Upper strut mount helps keep steering precise and limits noise, vibration and memory steer
- Protective coating resists rust and corrosion and is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 172209 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2005-2006 Chevrolet Equinox and other vehicles
- Position: Front right
- Material: Steel
- Condition: New
A bouncy ride, fluid leaking down the strut body or a clunk over bumps can mean a strut or spring is worn. These signs alone do not prove the strut is the problem, since a worn sway bar end link can cause a clunk too. This listing is one assembly, and both front sides are normally replaced together.
Fits
It fits the 2005-2006 Chevrolet Equinox and the 2006 Pontiac Torrent.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Compressed length: 13 in (330.2 mm)
- Extended length: 20.94 in (531.9 mm)
- Travel length: 7.94 in
- Body length: 11.56 in
Build and materials
- Type: Gas-charged passive strut with coil spring, upper mount and insulators
- Material: Steel
- Adjustable compression and ride height: No
- Condition: New
- Warranty: Monroe limited lifetime warranty and Feel the Difference™ Guarantee
- Assembled in Paragould, Arkansas
In the box
One strut assembly with the coil spring, upper strut mount, coil spring insulator, strut mount insulator and mounting hardware. The front right takes one, and the front left is ordered separately.
Interchange: 2701502759 · 18816651 · 19122333 · LS5390561R · 1333299R · G57111 · G57536 · SR4159 · 501722099 · ST8618R · 33GM1118 · LS57111 · LS57536 · ST56774 · 816651 · 815290 · 92140190 · 55S11012 · 11012
This part cross-references / interchanges with the following part numbers:
2701502759, 18816651, 19122333, LS5390561R, 1333299R, G57111, G57536, SR4159, 501722099, ST8618R, 33GM1118, LS57111, LS57536, ST56774, 172209, 816651, 815290, 92140190, 55S11012, 11012
Frequently Asked Questions
Is this the front strut assembly for a 2005 Chevy Equinox?
Yes, Monroe Shocks & Struts 172209 is the front right strut assembly for the 2005-2006 Chevrolet Equinox and the 2006 Pontiac Torrent. The front left is a separate part.
Does this Quick-Strut come with the coil spring and upper mount?
Yes, this strut assembly includes the coil spring, upper strut mount, both insulators and mounting hardware, preassembled as one unit. This listing is a single front right assembly.
How long is this strut when compressed and extended?
The Monroe 172209 measures 13 in (330.2 mm) compressed and 20.94 in (531.9 mm) extended, with 7.94 in of travel.
How can I tell if a front strut is wearing out?
Fluid leaking down the strut body, a bouncy ride or a clunk over bumps can mean wear. A shop can test the suspension and confirm it.
Is this strut gas charged, and can the ride height be adjusted?
Yes, this front right strut is gas charged. No, ride height and compression are not adjustable, because it is a passive strut.
