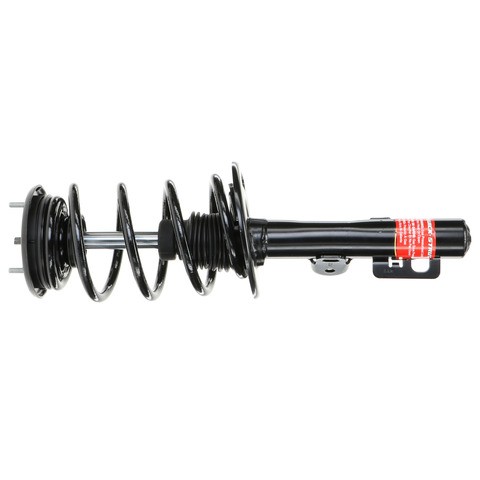

Monroe Shocks & Struts 172761 front left strut assembly for the 2009 Lincoln MKS replaces the strut, coil spring and upper mount as one unit. It is also known as a complete strut and coil spring assembly.
- Quick-Strut line with application-specific coil spring, mount and strut designs
- Coil spring engineered to restore ride height and support the vehicle's weight
- Strut that reduces body sway, vibration and road harshness for steadier handling
- Upper strut mount helps keep steering smooth and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and the part is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 172761 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2009 Lincoln MKS
- Position: Front left
- Condition: New
A worn strut assembly can show up as a bouncy ride, extra body sway or a clunk over bumps, though worn sway bar end links or control arm bushings can be behind the same signs, so find the cause before you replace it.
Fits
This front left strut assembly is a direct-fit replacement for the 2009 Lincoln MKS.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Extended length: 19.22 in (488.2 mm)
- Compressed length: 11.95 in (303.5 mm)
- Travel length: 7.27 in
- Body length: 11.76 in
Build and materials
- Type: gas-charged, passive suspension
- Adjustable compression: no; adjustable ride height: no
- Included: coil spring, strut mount, coil spring insulators, strut mount insulators
- Finish: protective coating
- Condition: new
- Warranty: Monroe limited lifetime warranty
In the box
One front left strut assembly with its coil spring, strut mount, insulators and mounting hardware. This side takes one; the front right is a separate part ordered separately, and both are normally replaced together.
Installation notes
- Arrives fully assembled, so no spring compressor is needed for strut replacement.
- Strut, coil spring and upper mount come preassembled in a single unit.
Interchange: 18920047 · 1333864L · G52398 · 8A5Z18124F · 92141373
This part cross-references / interchanges with the following part numbers:
18920047, 1333864L, G52398, 8A5Z18124F, 172761, 92141373
Frequently Asked Questions
Does the Monroe Quick-Strut 172761 fit the 2009 Lincoln MKS?
Yes. Monroe Shocks & Struts 172761 is a front left strut assembly made for the 2009 Lincoln MKS, and the front right side is a separate part.
What comes with this front left strut assembly besides the strut?
The coil spring, strut mount, coil spring and strut mount insulators and mounting hardware come with the strut, already assembled as one unit.
How long is the Monroe 172761 strut when extended and compressed?
Monroe 172761 measures 19.22 in (488.2 mm) extended and 11.95 in (303.5 mm) compressed, with 7.27 in of travel.
Do I need a spring compressor to install the Quick-Strut 172761?
No. The spring, mount and strut arrive together as a fully assembled unit, so strut replacement needs no spring compressor.
Is this Quick-Strut assembly adjustable for ride height or compression?
No. This strut assembly has no adjustable ride height and no adjustable compression; it is a passive, gas-charged unit.
