Monroe Shocks & Struts 173024 rear left strut assembly for the 2015-2023 Jeep Renegade replaces the strut, spring and upper mount in one unit. It is also called a complete strut and coil spring assembly.

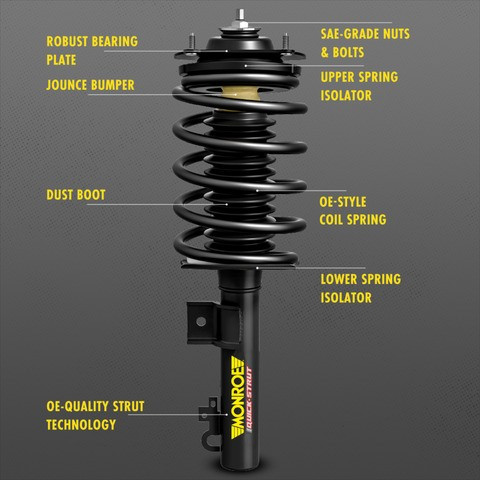

- Monroe Quick-Strut: strut, coil spring and upper mount come preassembled, with no spring compressor needed

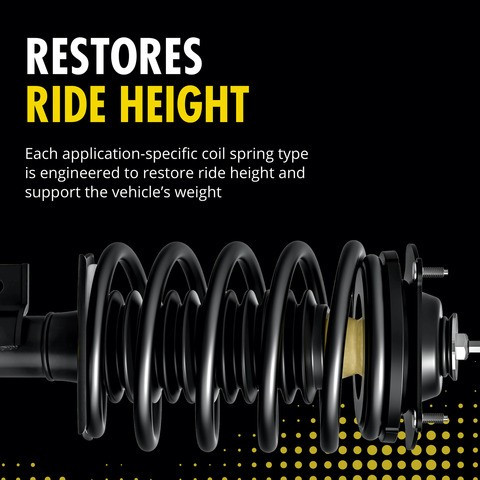

- Application-specific coil spring engineered to restore ride height and support the vehicle's weight
- Vehicle-specific coil spring, mount and strut designs for the ride and handling of each vehicle profile
- Reduces body sway, vibration and road harshness for improved handling

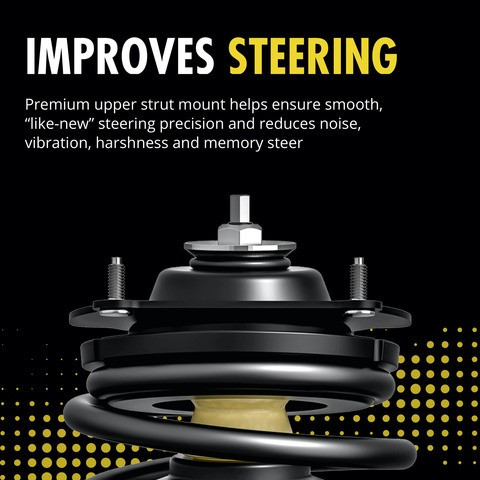

- Upper strut mount helps prevent noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and salt spray testing backs it up
Quick facts
- Part: Monroe Shocks & Struts 173024 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2015-2023 Jeep Renegade
- Position: Rear left
- Condition: New
A worn strut can show up as a bouncy or swaying rear end, oily fluid on the strut body or uneven tire wear. With the engine off, look for a leaking body, a torn boot or a cracked spring, and have other suspension parts ruled out as the cause before you replace it.
Fits
This is a direct-fit replacement for the 2015-2023 Jeep Renegade. Rear struts are normally replaced in pairs, but this listing is one strut for the rear left; the rear right is a separate part. The 2015-2023 Jeep Renegade takes one on each side of the rear axle.
Specifications
Fit and size
- Position: rear left
- Quantity per vehicle: 1 per side
- Body length: 14.92 in
- Compressed length: 15.37 in (390.4 mm)
- Extended length: 24.62 in (625.3 mm)
- Travel length: 9.25 in
- Upper mount code: 235
Build and materials
- Type: strut assembly with coil spring, passive suspension
- Ride height: not adjustable
- Finish: protective rust-resistant coating
- Condition: new
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One rear left strut assembly with its coil spring, upper strut mount, coil spring insulator and strut mount insulator. Mounting hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Interchange: LS5496212L · 34JP1117
This part cross-references / interchanges with the following part numbers:
LS5496212L, 34JP1117, 173024
Frequently Asked Questions
Is the Monroe Quick-Strut 173024 the right strut for a 2015-2023 Jeep Renegade?
Yes. Monroe Shocks & Struts 173024 is the rear left strut assembly for the 2015-2023 Jeep Renegade. The rear right side is a separate part.
Does the Monroe 173024 strut come with the coil spring and upper mount?
Yes. Monroe 173024 includes the coil spring, upper strut mount, and the spring and mount insulators. Mounting hardware is not included.
How long is this strut assembly compressed and extended?
This rear left strut assembly measures 15.37 in (390.4 mm) compressed and 24.62 in (625.3 mm) extended, with 9.25 in of travel.
How can I tell if the rear left strut in this Monroe assembly is worn?
Oily fluid on the strut body, a torn boot or a cracked spring can be seen with the engine off. While driving, a bouncy or swaying rear end or uneven tire wear can also be signs.
Do I need a spring compressor to install this Monroe Quick-Strut?
No. The strut, coil spring and upper mount come preassembled in one unit, so no spring compressor is needed for the strut replacement.
